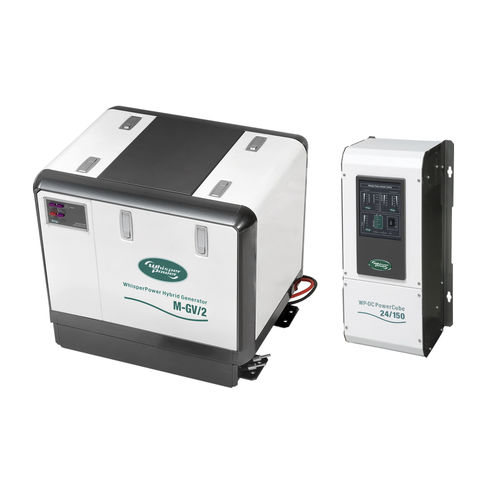

Diesel generator set M-GV 2

for boatswith alternator

All-in-one DC generator system World-wide plug-in facility from 90 VAC - 265 VAC Fast charging, reduced running time Minimal audible noise Hardly any vibration Installation examples: range extender, electrical propulsion (24 V / 48 V) or as DC powerpack MAIN SPECIFICATIONS System output - 4.3 kW (24 V - 150 A) Charge current - 150 A at 24 VDC or 80 A at 48 VDC DC Charge module - DC PowerCube Harmonic distortion - > 5% Parallel operation - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 1500...2400 Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine model - Kubota or Mitsubishi Number of cylinders - 2 Engine cooling - Indirect watercooling Fuel consumption - 1.2 - 2.0 l/hr Starting - Electrical (12 V) Starter battery - 12 V - 80 Ah (optional) 12 V Battery charger - Included DIMENSIONS & WEIGHT Length - 649 mm Width - 544 mm Height - 599 mm Dry weight - 154 kg Length PowerCube - 575 mm Width PowerCube - 221 mm Height PowerCube - 316 mm Weight PowerCube - 26 kg INSTALLATION ACCESSORIES Wet exhaust - Ø 40 mm Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
