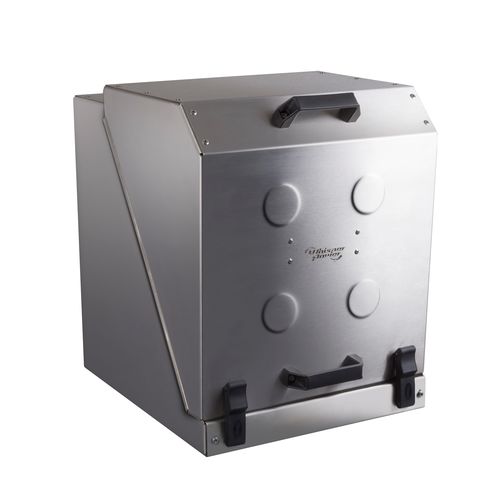

Diesel generator set W-GV 4 Scalino MOBILE

for boatssoundproofedwith alternator

The most silent and compact generator in the market! 1-cylinder Permanent Magnet generator with external PMG box (power module) 4.4 kVA (3.5 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply Also available with stainless steel enclosure for installation outside the vehicle Parallel use possible with the TWIN power solution MAIN SPECIFICATIONS System output - 4.4 kVA / 3.5 kW at 3600 rpm Nominal Voltage AC - 230 V / 50 Hz, adjustable to 60 Hz RPM range - 2800 .. 3600 RPM adjustable or automatic Noise Level - 54 dB (A) at 7 m, 65 dB (A) at 1 m Inverter Module - WP-PMG frame 1 Harmonic distortion - < 5% ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) SPECIFICATIONS DIESEL ENGINE Engine - WhisperPower WP1 Number of cylinders - 1 Capacity - 309 cc (one cylinder) Air consumption - < 0.42 m³/min Engine cooling - Oil cooled Fuel consumption - 0.8-1.2 l/hr (no load - full load) Starter battery - Charger 12 V / 7 A DIMENSIONS & WEIGHT Length - 430 mm Width - 450 mm Height - 510 mm Dry weight - 73 kg Length PMG - 420 mm Width PMG - 196 mm Height PMG - 148 mm Weight PMG - 7 kg OTHER SPECIFICATIONS Dry Exhaust pipe - Ø 1 inch BSP / Ø 40 mm Location oil refill cap - Service side Max. operating angle - 25º in all directions
