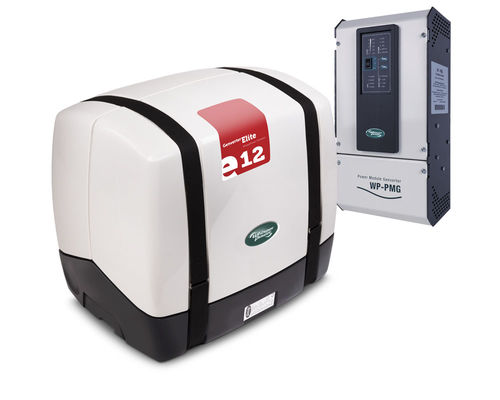

Diesel generator set Elite 12 MOBILE
for boatssoundproofedwith alternator

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Options and accessories
soundproofed, with alternator
Output power

10 kW
(13.6 hp)

Description

The most silent and compact generator in the market! 3-cylinder Permanent Magnet generator with external PMG box (power module) 12 kVA (10 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply EPA /Tier 4 (USA standard) and Stage V certified Parallel use possible with the TWIN power solution MAIN SPECIFICATIONS System output - 12 kVA / 10 kW RPM range - 2200 .. 3600 adjustable Noise Level - 54 dB (A) at 7 m, 65 dB (A) at 1 m Output voltage / frequency - 230 V / 50 Hz, (or 120 V / 60 Hz) Harmonic distortion - < 3% Parallel operation - Yes Standard remote panel - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 2200 .. 3600 adjustable SPECIFICATIONS DIESEL ENGINE Engine - Kubota D722 Number of cylinders - 3 Capacity - 719 cc Air consumption - 1.22 m3 / min Engine cooling - Indirect Fuel consumption - 1.2 - 3 l/hr Starting - Electrical - 12 Volt Starter battery - 12 V / 80 Ah (optional) DIMENSIONS & WEIGHT Length - 740 mm Width - 550 mm Height - 622 mm Dry weight - 175 kg Length PMG - 451 mm Width PMG - 200 mm Height PMG - 174 mm Weight PMG - 9.9 kg OTHER SPECIFICATIONS Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
