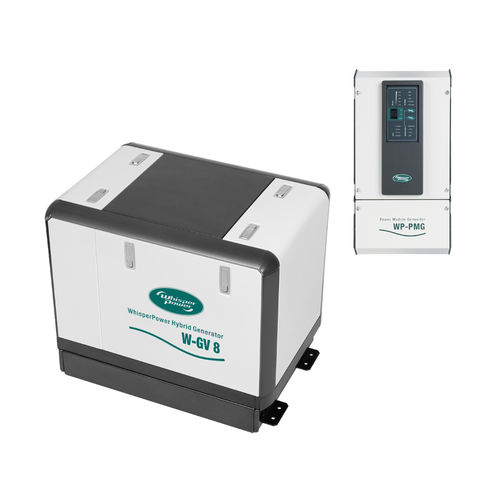

Diesel generator set W-GV 8 MOBILE
for boatssoundproofedwith alternator

diesel generator set
diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Options and accessories
soundproofed, with alternator
Output power

6 kW
(8.2 hp)

Description

2-cylinder Permanent Magnet generator with external PMG box (power module) Excellent choice to replace traditional gensets 8 kVA (6 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply MAIN SPECIFICATIONS System output - 8 kVA / 6 kW Inverter Module - WP-PMG frame 2 Output voltage / frequency - 230 V / 50 Hz Harmonic distortion - <5% Parallel operation - No ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 2200 .. 2800 Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine - Kubota Z482 (Mitsubishi optional) Number of cylinders - 2 Capacity - 499 cc Engine cooling - Radiator cooling Fuel consumption - 1.2 - 2.5 l/hr Starting - Electrical - 12 Volt Starter battery - 12 V / 80 Ah (optional) 12V Alternator - Included DIMENSIONS & WEIGHT Length - 650 mm Width - 545 mm Height - 600 mm Dry weight - 154 KG + 9.9 kg Length PMG - 451 mm Width PMG - 200 mm Height PMG - 174 mm Weight PMG - 9.9 kg OTHER SPECIFICATIONS Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
