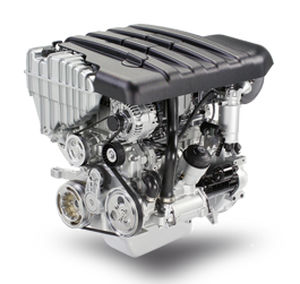

Inboard engine MR 704 LH
dieselboatingturbocharged

inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating
Technology
turbocharged, common-rail
Cooling system
water-cooled
Other characteristics
4-stroke
Power

210 ch
(210 hp)

Displacement

3 l
(1 gal)

Number of cylinders

4 unit

Engine speed

3,800 rpm
(23,876 rad.min-1)

Bore

94 mm
(3.7 in)

Stroke

100 mm
(3.9 in)

Length

850 mm
(33 in)

Width

758 mm
(30 in)

Height

805 mm
(32 in)

Weight

360 kg
(794 lb)

Description

The MR704LH is a 4-stroke, turbocharged and aftercooled diesel engine with electronically controlled direct injection., 2.8L displacement. It offers excellent performance with low fuel consumption. Cooling is controlled by separate fresh and salt water circuits, with extractable hoses for easy maintenance. La turbina ed il collettore di scarico sono raffreddati ad acqua dolce per diminuire le pari calde a bordo. The oil circuit (which is cooled by means of a fresh water heat exchanger), water and air circuits have been designed to reduce external flexible pipes to minimum to reduce loss of liquids in the bilge. The displacement of 2.8L combines great reliability and a high torque at low revs. The dimensions and weight of the engine make the engine easy to install in small spaces.
