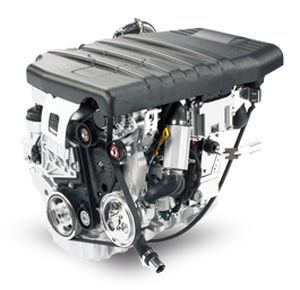

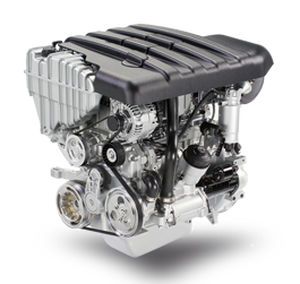

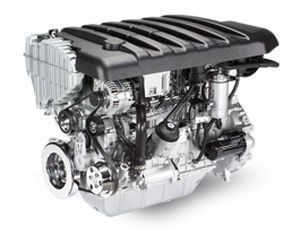

Inboard engine MR 504 LS3
dieselboatingturbocharged

Inboard engine - MR 504 LS3 - VM Motori - diesel / boating / turbocharged

Add to favorites

Compare this product

Characteristics

Type: inboard
Power source: diesel
Market: boating
Technology: turbocharged, common rail
Cooling system: water-cooled
Pollution control standard: Tier 3
Power: 130 ch
(130 hp)
Displacement: 2 l
(1 gal)
Number of cylinders: 4 unit
Engine speed: 4,000 rpm
(25,133 rad.min-1)
Bore: 83 mm
(3.3 in)
Stroke: 92 mm
(3.6 in)
Length: 802 mm
(32 in)
Width: 720 mm
(28 in)
Height: 757 mm
(30 in)
Weight: 250 kg
(551 lb)

Description

The VM MR504LS3 engine is a 4-cylinder 2.0L, light and compact, able to guarantee performance and reliability making them suitable for all conditions of use. The main technical features are the 1600 bar common rail injection system, single camshaft distribution controlled by toothed belt, balancer shafts, 4 valves per cylinder and fixed geometry turbocharger (FGT). Cooling is controlled by separate fresh - salt water circuits, with extractable hoses for easy maintenance. Fast and ecological, the MR504 engine is able to meet the needs of every yachtsman.
