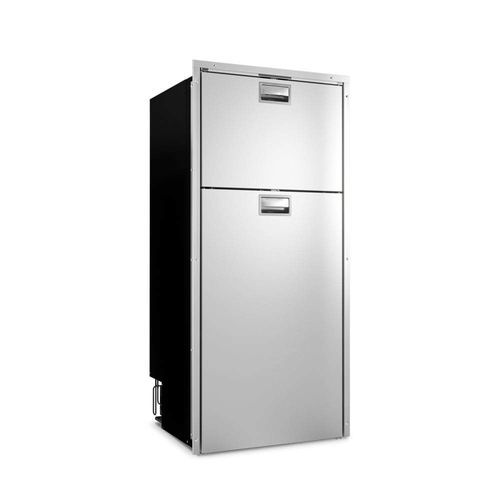

Boat refrigerator-freezer DP260iXD OCX2

built-infront loadingAC

Overview The DP260iXD OCX2 stainless steel fridge-freezer provides a total volume of 216 L, including a 56 L freezer compartment. The unit is fitted with an R290 gas compressor and an internal cooling unit. It is designed for built-in installation with reversible door options and electronic temperature control.

Main features

• Positive snap door closure to prevent accidental openings during transport or use.
• Unique stainless steel fixing profile enabling built-in installation in door outside (partial) or door inside (flush) configurations.
• “Vent Position” handle system allows partial door opening during long inactive periods to reduce mold and odors.
• Internal fixing points for secure anchoring directly from the installation cavity.

Additional features

• Internal LED lighting high-efficiency illumination for clear visibility with low power draw.
• Internal ventilation ensures even cold-air distribution for stable temperature throughout the compartment.
• Electronic LED thermostat with app control for remote temperature management and monitoring.
• Control functions: Temperature set level, Timed shutdown, Timed night mode, Timed turbo mode. System supports data display, error alerts, service communication and push notifications.
• Optional power supply: 115–230 Vac 50/60 Hz → 24 Vdc / 300 W.

Sizes (overall and recessed dimensions with fixing profile) DOOR INSIDE | DOOR OUTSIDE
t: 25 | 25
w: 631 | 631
h: 1355 | 1355
a: 575 | 533
b: 586 | 586
c: 1347 | 1347

Technical specifications

• Total volume: 216 L (Freezer: 56 L)
• Consumption: 655 Wh/24h
• Height: 1355 mm
• Width: 631 mm
• Depth: 573 mm
• Weight: 62 Kg
• Series: OCX2
• Reversible door: Yes
• Thermostat: ELECTRONIC LED (app control)
• Refrigeration technology: Compressor (R290)
• Cooling unit: Internal
• Door opening: Double front door
• Supply: 12/24 Vdc (optional 115–230 Vac 50/60 Hz → 24 Vdc / 300 W)
