Voltage inverter-charger Multi RS

ACDCbattery

Product overview

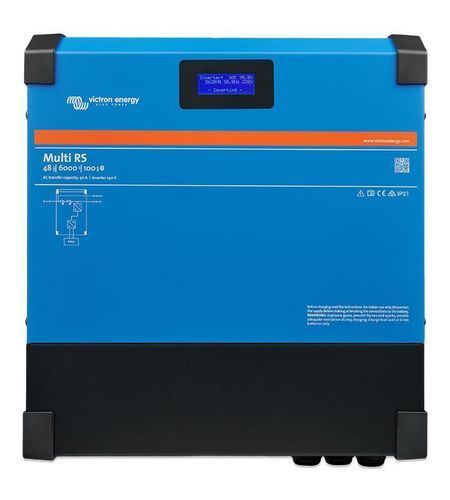

The Multi RS 48/6000 is a lightweight, high-frequency 48 V / 6 kVA inverter/charger designed for both stationary and mobile installations. It is the non-solar variant of the Multi RS Solar and does not include integrated solar charge controllers. The unit supports Dynamic ESS in stationary systems and can operate as a direct grid connection without batteries, allowing staged installation of storage.

Applications

• Stationary systems: Dynamic ESS support; flexible pairing with different solar inverter types or sizes; direct grid connection without batteries for simple start-up.
• Mobile systems: lightweight inverter/charger that maintains battery charge and can feed excess energy back to the grid when available.

Monitoring & connectivity

• Integrated display for local parameter monitoring.
• VictronConnect app for remote monitoring, historical trend data, firmware updates and configuration.
• Optional Cerbo GX integration for advanced ESS features (zero‑export, backup mode). PowerControl & PowerAssist supported.

Key features

• High-frequency 48 V inverter/charger architecture
• 6000 VA continuous inverter output (at 25 °C)
• Lightweight design suitable for stationary and mobile use
• Dynamic ESS compatible for advanced storage strategies
• Can operate as direct grid connection without batteries
• Integrated display and VictronConnect support
• Optional Cerbo GX for zero‑export and backup mode
• PowerControl & PowerAssist functionality supported

Product variants / models

• Multi RS 48/6000/100-50 230V (shown variant)

Documentation & media
Datasheet, user manuals, enclosure dimension drawings, high-resolution photos and certificates are available for the Multi RS 230V on the product page.

Technical specifications

• Model family: Multi RS
• Displayed product name: Multi RS 230V
• Variant shown: Multi RS 48/6000/100-50 230V
• Article code / part number: PMR482604000
• Continuous output power (at 25 °C): 6,000 VA
• Transfer switch (AC transfer): 50 A
• Max. battery charge current: 88 A
• Battery nominal voltage: 48 V
• 230 VAC connection: Screw terminals 10 mm² (8 AWG)
• Dimensions (H x W x D): 462 x 425 x 127 mm
• Weight: 11.2 kg
• VE.Bus communication port: not specified
