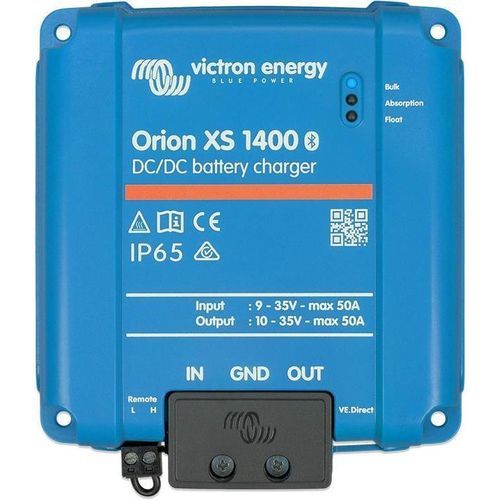

Battery charger Orion XS

for boatmarinefor motor boats

Product overview
Using engine power to charge your service battery, the Orion XS DC-DC charger combines impressive power with an ultra-compact, ultra-durable design. Available in 12V and 12V/24V mixed-voltage models, it is ideal for dual-battery setups and doubles as a DC-to-DC converter for sensitive electronics.

Key features

• Smallest high-power DC-DC charger in its class with up to 98.5% charging efficiency
• Fully configurable charging voltage and input current
• Built with a re-engineered aluminium circuit board that acts as a heat sink for efficient cooling
• Delivers full rated output up to 40°C before thermal derating
• Supports mixed-voltage conversion (12V ↔ 24V) on the 1400 model
• Parallel operation supported to increase total output current

Models

• 12/12-50A
• 12/12-70A
• 1400 (dual voltage: 12V & 24V)

Performance & thermal

• Up to 98.5% charging efficiency
• Full rated power up to 40°C (104°F): 700W for 12/12-50A, 1000W for 12/12-70A, 1400W for 1400 model
• Efficient cooling via aluminium PCB/heat-sink design to maintain full output in hot, cramped compartments

Charging & configuration

• Input current limiting to prevent alternator overload
• Charging voltage configurable to support lithium, AGM, Gel, flooded and other chemistries
• Eight battery presets available; full customisation via VictronConnect app
• Intelligent multi-stage adaptive charge algorithm for battery longevity

Communications & system integration

• VE.Direct port for communication and remote monitoring
• VE.Smart networking (wireless data sharing) with select Victron devices for voltage and temperature compensation
• Works with VictronConnect app and VRM remote monitoring; supports DVCC for system-wide battery control

Protections & reliability

• IP65-rated electronics enclosure (designed for harsh environments)
• Protection against overload, short circuit, overcharging and overheating
• Automatic low-temperature shutdown to protect lithium batteries
• Undervoltage protection and automatic restart when input voltage recovers
• Engine running detection prevents charging when engine is off

Applications

• Recreational vehicles, marine, professional vehicles, off-grid systems and other mobile or compact installations
• Designed to sit in tight engine compartments and continue delivering efficient charging

caractéristiques / spécifications techniques

• Series / Model: Orion XS
• Available versions: 12/12-50A, 12/12-70A, 1400 (dual voltage 12V & 24V)
• Maximum output power: ~700W (12/12-50A), ~1000W (12/12-70A), ~1400W (1400 model)
• Charging efficiency: up to 98.5%
• Operating temperature: full rated output up to 40°C before derating
• Enclosure rating: IP65 (electronics)
• Battery presets: 8 built-in battery type presets; custom settings via VictronConnect
• Protection features: overload, short circuit, overtemperature, overcharge, undervoltage, low-temperature shutdown
• Communications: VE.Direct port; VE.Smart networking support; compatible with VictronConnect and VRM
• Features: input current limiting, parallel operation, 12↔24V conversion (1400)
