AC inverter-charger Multi RS19

DCbattery

Product overview

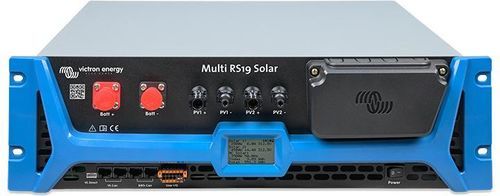

The Multi RS19 Solar 48/6000/100-450/100 230V is a lightweight, high-frequency 48 V / 6 kVA inverter/charger with two independent 3 kWp PV MPPT trackers (65–450 V DC per tracker). It is the 19" rack variant designed for compact battery-rack installations and is suitable for grid-connected, hybrid and off-grid systems.

Grid-connected functionality
Supports Dynamic ESS for grid-tied energy storage systems and can be paired with AC‑coupled PV inverters. Excess PV can be added via AC‑coupled inverters whose output is managed automatically by the Multi RS frequency-shift power control. The unit also supports direct grid connection without batteries to allow initial installation without storage.

Off-grid functionality
Provides battery charging and inverter support in standalone systems. The device maintains battery state of charge and supplies additional power during peak demand, enabling reliable off-grid operation.

Monitoring & integration
All parameters are available via the integrated display and the VictronConnect app (historical trends supported). For advanced ESS functions (zero-export, backup mode, advanced control) the product can be connected to a GX device (e.g. Cerbo GX).

Performance & design
High-frequency topology delivers high efficiency in a compact, quiet and lightweight enclosure with low standby consumption, making the unit suitable for installations where space and weight are constrained.

Key features

• 48 V, 6 kVA inverter/charger (high-frequency)
• Two independent PV MPPT trackers, 3 kWp each (total 6 kWp)
• MPPT input range per tracker: 65–450 V DC
• 19" rack variant for compact battery-rack installation
• Supports Dynamic ESS and frequency-shift power control for AC‑coupled PV inverters
• Operable grid-connected (including direct grid connection without batteries) or off-grid
• Integrated display and VictronConnect app support (historical trends)
• Compatible with GX devices (e.g. Cerbo GX) for advanced ESS features: zero-export, backup mode
• Quiet operation, high efficiency and low standby consumption

Technical specifications

• Model designation: Multi RS19 Solar 48/6000/100-450/100 230V
• Continuous output power (25 °C): 6,000 VA
• Nominal battery voltage: 48 V
• Total PV capacity: 6 kWp (2 × 3 kWp MPPT)
• MPPT input range: 65–450 V DC per tracker
• Max. battery charge current: 88 A
• Transfer switch: 50 A
• 230 VAC connection: Rigid cable 0.2 mm² – 10 mm² / Flexible cable 0.25 mm² – 6 mm²
• Dimensions (H×W×D): 133 × 483 × 430 mm
• Weight: 12.2 kg
• Article code / product code: PMR482602030
