Inflatable life jacket FIRST VACUUM

Hammar HydrostaticPro-Sensor Automaticmanual

Description

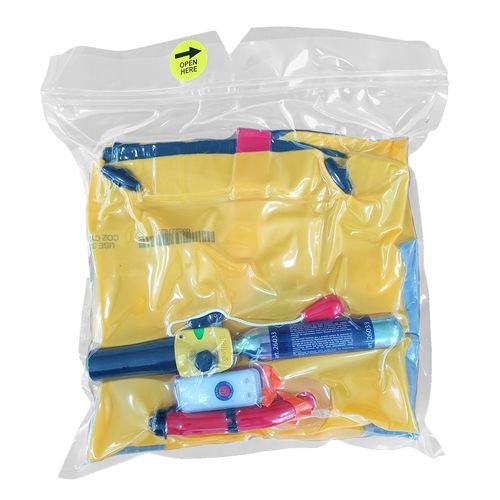

FIRST VACUUM - SOLAS 160 Inflatable lifejacket certified SOLAS M.E.D., vacuum-packed to provide enhanced protection during onboard storage. The vacuum sealing shields the device from moisture, dust and salt, reducing material degradation and keeping the lifejacket ready for use after prolonged periods aboard. Its compact packed size simplifies stowage in dedicated spaces, while an ergonomic design ensures quick and intuitive donning with minimal interference to movement.

Key features

• SOLAS M.E.D. certification
• Vacuum-packed (vacuum sealed)
• Compact, reduced stowage volume
• Immediate deployment in an emergency
• Ergonomic and intuitive to wear
• Maintains optimal condition after extended storage

Benefits

• Extended material life due to vacuum protection
• Fast distribution and donning in emergencies
• Lower risk of deterioration from marine environment
• Space saving up to 83% in onboard stowage (1 M-CUBE = 7 FIRST VACUUM 160N)

Inflation systems
The lifejacket incorporates the following inflation options:

• Automatic inflation: on immersion the system triggers inflation of the buoyancy chamber within 5 seconds. Available with UML MK5 (water-soluble pill) or HAMMAR MA1/EC (hydrostatic) inflators.
• Oral inflation: as an emergency or supplementary method, the buoyancy chamber can be inflated via the oral tube with non-return valve and protective cap.
• Manual inflation: the system can be activated by pulling the manual lever; supplied with UML MICROMANUAL manual inflator (hand-operated only).

Technical specifications

• Type: Inflatable lifejacket
• Real buoyancy: >160 N (160 N indicated as operational value)
• CO2 cylinder: 33 g, ½" GAS thread
• Closure system: 40 mm webbing with quick-release acetal resin buckle
• Certifications: SOLAS M.E.D.
• Size: Adult
• Supported weight: >40 kg; product table indication: 43/140 Kg
• Chest circumference: 80 – 175 cm (oversize fit) / table value: 175 cm
• Chamber: PA 420 PU coated, yellow – double chamber for SOLAS, high-frequency welded with electronic control
• Packed dimensions: 28 × 23 × 4.5 cm
• Product weight: 02272 (UML MK5): 765 g; 02272/H (HAMMAR MA1/EC): 672 g
• Packaging: 60 × 40 × 40 cm (boxes of 18 pieces)
• Service interval: every 12 months (possibility of 5-year service programs in agreement with Notified Bodies and Flag Registers)
• Included accessories: signaling light, whistle

Notes
The double-compartment buoyancy chamber is shaped to follow body ergonomics and optimise the in-water position, ensuring immediate body rotation (Spin-Tilt) and keeping airways clear of water. Even with a fully inflated chamber it is possible to swim to a safe location or board a liferaft. According to LSA Code and SOLAS rules, lifejackets must be equipped with SOLAS signalling lights.
