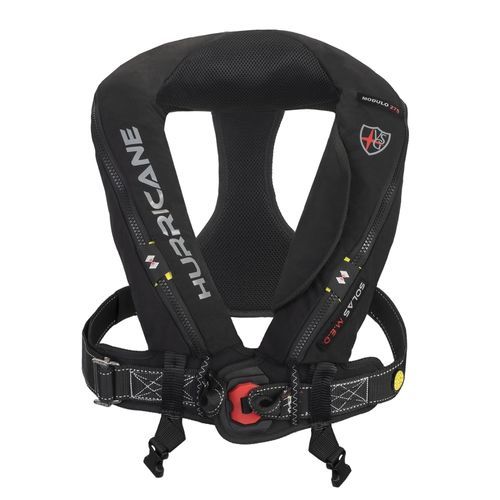

Inflatable life jacket MODULO 275 – HX HURRICANE

self-inflatingHammar Hydrostaticmanual

Brief description
Inflatable life jacket for adults, certified SOLAS M.E.D., double-compartment buoyancy chamber and high-strength fabric case. Fitted with ISO 12401-certified harness, front attachment for safety belt and double crotch strap. Designed for freedom of movement during navigation operations. Available with DAA, DAAM and SAA activation options. All SOLAS VSG inflatables include 2 mouth tubes.

Activation systems
Automatic activation: immersion of the mechanism triggers autonomous inflation (automatic/self-inflating). Manual activation: inflation triggered by pulling the activation handle. Oral inflation: mouth tube provided for manual inflation if required.

Configurations / Activator models

• DAA: 2 x UML-MK5 automatic activators
• DAAM: 1 x UML-MK5 automatic activator + 1 x UML MICROMANUAL manual activator
• SAA: 1 x UML-MK5 automatic activator
• Optional: HAMMAR A1 hydrostatic activator available (with protective bumper)

Accessories included

• Sprayhood
• Automatic emergency light
• Floating knife

Accessories available on request

• Flame-resistant cover

Spare parts

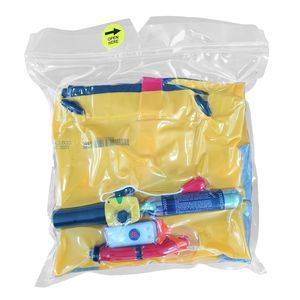

• VSG rearmament kit with 60 g canister
• Double crotch strap

Service
Mandatory service interval: every 12 months. Outer case can be customised with company lettering or logos.

Regulatory note
In compliance with the LSA Code and SOLAS regulations, life jackets must be equipped with SOLAS signalling lights.

Technical specifications

• Size: Adult
• Certification: SOLAS M.E.D.
• Real buoyancy: 310 N (some variants) or 290 N (other variants)
• Supported weight: 43–140 kg
• Chest circumference: 175 cm
• Service interval: 12 months
• Certified harness: ISO 12401
• CO2 cylinder: 60 g x 2 or 60 g x 1 depending on variant
• Weight (depending on variant): approx. 1.93 kg to 2.30 kg
• Activation options: DAA, DAAM, SAA
• Mouth tubes: 2
