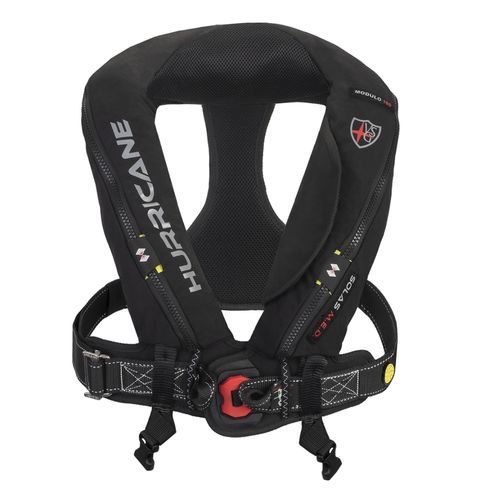

Self-inflating life jacket MODULO 150 – HX HURRICANE

170 N160 NISO12401

Description
Inflatable life jacket for adults certified SOLAS M.E.D. Double-compartment buoyancy chamber with high-strength fabric case. Equipped with Buddy System and ISO 12401-certified harness with front attachment for a safety belt. Reinforced by a double crotch strap. Designed for maximum freedom of movement aboard during navigation and deck operations.

Activation systems

• Automatic activation: submerged system triggers autonomous inflation within seconds (examples: UML MK5 salt activator or HAMMAR hydrostatic activator).
• Manual activation: inflation triggered by pulling the dedicated lever.
• Oral inflation: mouth tube provided for manual inflation on both self-inflating and manually-activated models.

Models / Configurations

• Available activations: DAA (Dual Automatic Activator), DAAM (Dual Automatic and Manual Activator), SAA (Single Automatic Activator).
• Activator types: UML/HR (UML MK5 family) or HAMMAR (hydrostatic).
• Example DAA configuration: 2 x UML-MK5 automatic activators.
• All SOLAS VSG inflatable life jackets are supplied with two mouth tubes.

Accessories included

• Sprayhood
• Automatic emergency light
• Floating knife

Accessories available on request

• Flame-resistant cover

Spare parts

• VSG rearmament kit with 33 g canister
• Double crotch strap

Service
Service/inspection required every 12 months. The outer case can be customised with company lettering or logos.

Variants (detail by variation_id)
Variation 12420
Attributes: Activation = DAA, Activator type = UML/HR
Size: Adult
Certification: SOLAS M.E.D.
Real buoyancy: 170 N
Supported weight: 43–140 kg
Chest circumference: 175 cm
Service interval: 12 months
Certified harness: ISO 12401
CO2 canisters: 33 g x 2

Variation 12421
Attributes: Activation = DAAM, Activator type = UML/HR
Size: Adult
Certification: SOLAS M.E.D.
Real buoyancy: 170 N
Supported weight: 43–140 kg
Chest circumference: 175 cm
Service interval: 12 months
Certified harness: ISO 12401
CO2 canisters: 33 g x 2

Variation 12422
Attributes: Activation = SAA, Activator type = UML/HR
Size: Adult
Certification: SOLAS M.E.D.
Real buoyancy: 160 N
Supported weight: 43–140 kg
Chest circumference: 175 cm
Service interval: 12 months
Certified harness: ISO 12401
CO2 canisters: 33 g x 1

Variation 12423
Attributes: Activation = DAA, Activator type = HAMMAR
Size: Adult
Certification: SOLAS M.E.D.
Real buoyancy: 170 N
Supported weight: 43–140 kg
Chest circumference: 175 cm
Service interval: 12 months
Certified harness: ISO 12401
CO2 canisters: 33 g x 2

Variation 12424
Attributes: Activation = DAAM, Activator type = HAMMAR
Size: Adult
Certification: SOLAS M.E.D.
Real buoyancy: 170 N
Supported weight: 43–140 kg
Chest circumference: 175 cm
Service interval: 12 months
Certified harness: ISO 12401
CO2 canisters: 33 g x 2

Variation 12425
Attributes: Activation = SAA, Activator type = HAMMAR
Size: Adult
Certification: SOLAS M.E.D.
Real buoyancy: 160 N
Supported weight: 43–140 kg
Chest circumference: 175 cm
Service interval: 12 months
Certified harness: ISO 12401
CO2 canisters: 33 g x 1

Additional notes
All SOLAS VSG jackets include two mouth tubes. In accordance with the LSA Code and SOLAS standards, life jackets must be fitted with SOLAS signal lights.
