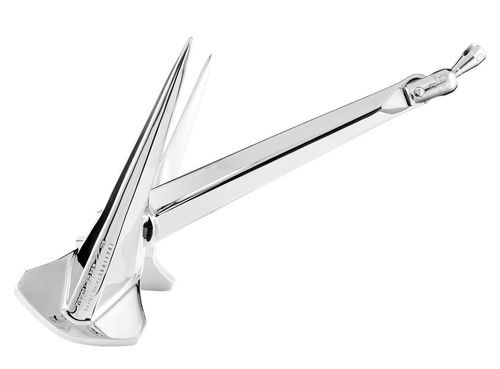

Ultra anchor ULTRA Side

for boatstainless steel

Overview
The ULTRA Bow-Pocket / Side-Pocket Anchor is a handmade anchor designed for improved seabed penetration, burying and holding power in bow-pocket and side-pocket installations. Designed in Turkey and produced in European stainless steels, it is available in Standard and Compact forms and in balanced or unbalanced configurations to suit vessel installation preferences.

Key features

• Fine front wings for rapid seabed penetration.
• Angled rear wings that reduce drag and promote deeper burying under load.
• Angled shank surface that slices into the seabed, minimizing resistance during setting.
• Special central hinge with self-cleaning action to prevent jamming.
• Available in Standard and Compact versions; Balanced and Unbalanced options for hawse-pipe or stem installations.
• Handmade from high-quality European stainless steels, polished finish.

Why the ULTRA Bow-Pocket Anchor works better

• Front wing tips are thin and sharp for initial penetration; rear wing geometry transfers resistance to the front tips to initiate the first bite.
• Front wings and claws provide a larger contact area with the seabed, increasing holding power once buried.
• Rear wing angles allow seabed material to flow and avoid unnecessary drag, enabling deeper set as the load increases.
• The hollow shank option lets the anchor have greater mass without increasing external size, preserving fit in pocket installations.

Sizes and materials

• Available sizes: from 21 kg (46 lbs) up to 1500 kg (3300 lbs).
• Versions: Standard and Compact; Balance: Balanced or Unbalanced to match vessel installation.
• Materials: European stainless steels, including 316L and 318LN; polished finish for corrosion resistance and appearance.
• Hollow shank option for higher mass within same external dimensions.

Selection notes

• Use the provided preliminary selection table for initial sizing. For anchors heavier than 500 kg, final selection should follow Lloyd calculations and naval architect guidance.
• For side hawse-pipe installations, prefer the Balanced type; for stem or bow installations, prefer the Unbalanced type when specified.
• The selection table on the product page applies to all ULTRA Pocket Anchors (Standard and Compact).

Warranty

• The product page includes a 10-year warranty statement.
• Elsewhere on the same page a lifetime warranty against manufacturing defects and normal use is referenced for properly selected anchors; consult the manufacturer for final warranty terms.

Warning

• A correctly selected ULTRA Pocket Anchor is engineered to resist extreme natural conditions, but all materials have mechanical limits.
• If the anchor becomes stuck, avoid applying excessive engine power that could cause permanent deformation.
• In recovery situations use appropriate retrieval techniques rather than extreme force to reduce risk of damage.

Technical specifications

• Brand: Ultra Products
• Commercial name / model: ULTRA Side Pocket Anchor (also referred to as ULTRA Bow-Pocket Anchor)
• Product type: Bow-Pocket / Side-Pocket anchor for boats, handmade
• Available sizes: 21 kg — 1500 kg (46 lbs — 3300 lbs)
• Versions: Standard, Compact
• Balance options: Balanced, Unbalanced
• Shank: Hollow shank option available
• Materials: European stainless steels including 316L and 318LN
• Finish: Polished
• Key features: fine front wings, angled rear wings, angled shank surface, larger contact area wings & claws, special self-cleaning central hinge
• Manufacture: Designed in Turkey, handmade
• Selection guidance: For anchors >500 kg use Lloyd calculations for final selection; preliminary table provided on page
• Warranty notes: 10-year warranty stated; lifetime warranty referenced for properly selected anchors—confirm with manufacturer
