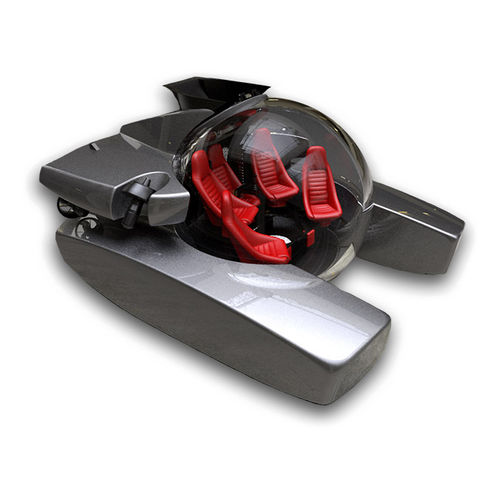

Passenger ship submarine 1650/7
maximum depth < 100 m

passenger ship submarine
passenger ship submarine
passenger ship submarine
passenger ship submarine
passenger ship submarine
Add to favorites
Compare this product

Characteristics

Type
for passenger ships
Depth
maximum depth < 100 m
Maximum depth

500 m (1640'05")

Description

Designed specifically with passenger capacity and comfort in mind, the Triton 1650/7 Configurable can take up to seven passengers to depth of 500 meters. Like all Triton submersibles it is incredibly versatile and can be configured to support a wide range of activities, with this model also offering a flexible passenger seating arrangement. OVERVIEW The additional 160mm internal diameter offered in this model allow for up to seven passengers to dive to depths of 500m, and the flexible seating arrangement can easily and rapidly be re-configured from 7-seat to 5-seat configurations, or vice versa, as and when required. Worth noting is the remarkable interior volume of the 1650/7 Configurable; at 6.37 cubic meters it is more than 220% more spacious than Triton’s flagship model, the Triton 3300/3 MKII (which is 2.88 cubic meters). TECHNICAL The table below shows the general specifications for the Triton 1650/7 Configurable. Additional items can be ordered as options. Details are provided on the Equipment page. GENERAL Depth - 1,650 ft / 500 m Payload - 2,200 lb / 1,000 kg Crew - Pilot + 6 Pax Speed - 3 kn Endurance - 10 hours Variable Ballast - 880 lb / 400 kg SIZE & WEIGHT Length - 14.9 ft / 4,550 mm Width - 11.8 ft / 3,600 mm Height - 7.9 ft / 2,400 mm Weight - 23,100 lb / 10,500 kg Pressure Hull Inner ⌀ - 90.5 in / 2,300 mm Pressure Hull Outer - 100.4 in / 2,550 mm Hatch Inner ⌀ - 27.5 in / 700 mm SYSTEMS 24 V Supply - Dual supply + Emergency Main Battery - 57 kWh Main Thrusters - 2x16 hp / 2x12 kW Vertran Thrusters - 2x16 hp / 2x12 kW Control - Joystick, Touchscreen & Manual Override External Lights - 6+ x 20,000 lumen LED Life Support - Oxygen + CO2 Scrubber

Catalogs

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
