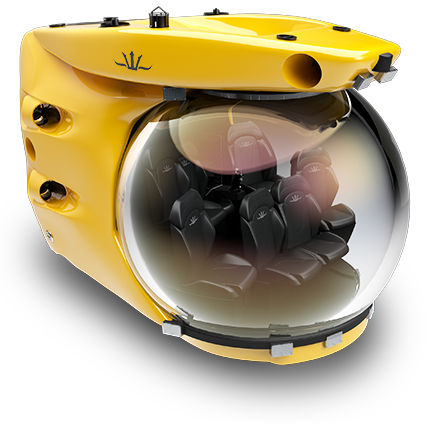

Tourism submarine 1650/7
maximum depth < 100 m

tourism submarine
tourism submarine
tourism submarine
tourism submarine
tourism submarine
Add to favorites
Compare this product

Characteristics

Type
tourism
Depth
maximum depth < 100 m
Maximum depth

500 m (1640'05")

Description

A Triton tourist submersible allows you to offer your guests or customers an unforgettable underwater experience. The seven-passenger Triton 1650/7 has been designed for operations from cruise-liners and megayachts. OVERVIEW The Triton 1650/7’s stability, large access hatch and retractable handrails provide safe and easy access to the submersible. The 2.3 meter diameter sphere provides the ultimate panoramic view while the interior design ensures a comfortable vantage point from which to enjoy the adventure. TECHNICAL The table below shows the general specifications for the Triton 1650/7. GENERAL Depth - 1,650 ft / 500 m Payload - 2,200 lb / 1,000 kg Crew - Pilot + 6 Pax Speed - 3 kn Endurance - 18 hours Main Ballast - 70 cu.ft / 2,000 l Variable Ballast - 18 cu.ft / 500 l SIZE & WEIGHT Length - 13 ft / 4.0 m Width - 8.7 ft / 2.6 m Height - 8.7 ft / 2.6 m Weight - 23,150 lb / 10,500 kg Pressure Hull Inner ⌀ - 90.5 in / 2,300 mm Pressure Hull Thickness ⌀ - 5 in /125 mm Hatch Inner ⌀ - 39 in / 1,000 mm SYSTEMS 24 V Supply - Dual Supply + Emergency Main Battery - 60 kWh Main Thrusters - 4x2.75 hp / 4x5.5 kW Vertical + Rotate Thrusters - 2+2 x 2.75 hp / 2+2 x 5.5 kW Control - Joystick, Touchscreen & Manual Override External Lights - 8 x 20,000 lumen LED Life Support - Oxygen + CO2 Scrubber
