Passenger ship submarine 1650/3 LP
maximum depth < 100 m

passenger ship submarine
passenger ship submarine
passenger ship submarine
passenger ship submarine
passenger ship submarine
passenger ship submarine
passenger ship submarine
Add to favorites
Compare this product

Characteristics

Type
for passenger ships
Depth
maximum depth < 100 m
Maximum depth

500 m (1640'05")

Description

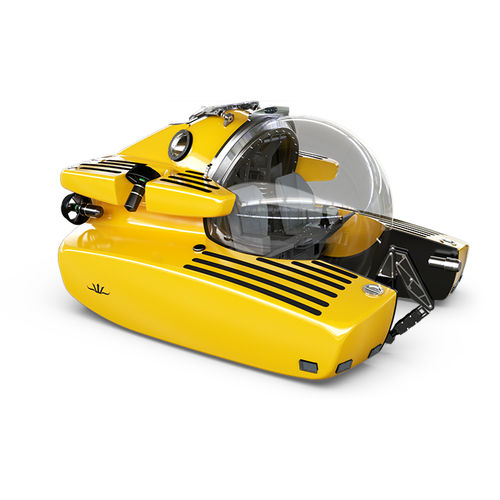

The Triton 1650/3 LP is the world’s lightest and most compact three passenger production submersible. The 1650/3 LP will take a pilot and two passengers to 500 meters (1,650 feet) in total comfort. OVERVIEW At only 5.9 feet in height (1.8 meters), with a modest crane weight of only 8,800 pounds (4,000 kilograms), the Triton 1650/3 LP is the world’s lightest and most compact three-person production submersible. The 1650/3 LP carries a pilot and two passengers to 1,650 feet (500 meters) in absolute comfort and style. TECHNICAL The table below shows the general specifications for the Triton 1650/3 LP. Additional items can be ordered as options. Details are provided on the Equipment page. GENERAL Depth - 1,639 ft / 500 m Payload - 1,210 lb / 550 kg Crew - Pilot + 2 Pax Speed - 3 kn Endurance - 12 hours Main Ballast - 4,840 lb / 2,200 kg Variable Ballast - 220 lb / 100 kg SIZE & WEIGHT Length - 10.5 ft / 3.2 m Width - 8.7 ft / 2.6 m Height - 5.9 ft / 1.8 m Weight - 8,800 lb / 4,000 kg Pressure Hull Inner ⌀ - 60 in / 1,525 mm Pressure Hull Tickness - 3.3 in / 85 mm Hatch Inner ⌀ - 23.6 in / 600 mm SYSTEMS 24 V Supply - Dual supply + Emergency Main Battery - 30 kWh Main Thrusters - 2x7.4 hp / 2x5.5 kW Vertran Thrusters - 2x7.4 hp / 2x5.5 kW Control - Joystick, Touchscreen & Manual Override External Lights - 6 x 20,000 lumen LED Life Support - Oxygen + CO2 Scrubber

Catalogs
