Adjuster turnbuckle S19RS series

for sailboatsbronzestainless steel

Product Description

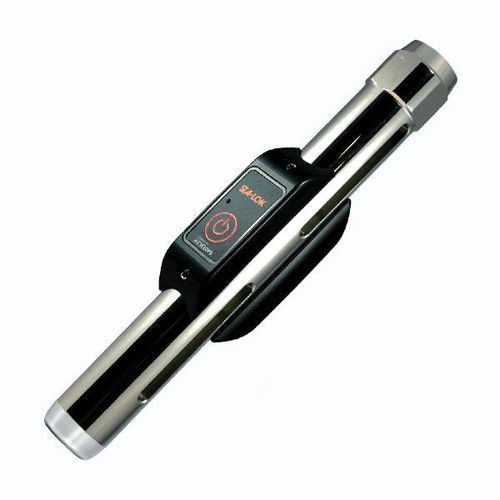

The Sta-Lok Supajust RS pairs a precision Supajust turnbuckle body with an integrated Cyclops Marine Load Sensor and advanced measurement electronics.
The turnbuckle body is machined from marine-grade 316 stainless steel and includes large spanner flats for easy adjustment and permanently sealed bronze thread inserts to prevent galling.
The load sensor features a waterproof housing beyond IP68 and is powered by a rechargeable battery (charger supplied).

Monitor Your Rig Loadings
The Supajust RS transmits rig-load data wirelessly to the Cyclops smartfittings mobile app and Gateway, enabling continuous monitoring on onboard displays or mobile devices.
Instant load feedback and configurable safety warnings let crews verify that the rig is operating within safe limits.
Logged data can be reviewed to support tuning and race/cruise analysis.

Key Features

• Supajust turnbuckle body integrated with Cyclops Marine Load Sensor
• Body material: 316 stainless steel
• Large spanner flats for straightforward adjustment
• Permanently sealed bronze inserts to prevent thread galling
• Load sensor waterproof housing rated beyond IP68
• Rechargeable battery; charger supplied
• Wireless connectivity to Cyclops smartfittings mobile app and Gateway
• Continuous rig-load monitoring, instant feedback and safety warnings
• Data logging capability for review and tuning

Variants (table)

• S19RS-34 — Thread 3/4", A = 248.0 mm (9.764 in), Adjustment = 124.0 mm (4.882 in)
• S19RS-78 — Thread 7/8", A = 280.0 mm (11.024 in), Adjustment = 144.0 mm (5.669 in)
• S19RS-100 — Thread 1", A = 315.0 mm (12.402 in), Adjustment = 174.0 mm (6.850 in)
• S19RS-118 — Thread 1 1/8", A = 365.0 mm (14.370 in), Adjustment = 214.0 mm (8.425 in)

Technical characteristics / specifications

• Brand: Sta-Lok
• Product Code: S19RS
• Commercial name (model): Supajust RS
• Body material: 316 stainless steel
• Bronze inserts: permanently sealed to prevent thread galling
• Load sensor: waterproof housing beyond IP68
• Power: rechargeable battery (charger supplied)
• Connectivity: wireless to Cyclops smartfittings mobile app and Gateway
• Functions: continuous rig-load data, instant load feedback, safety warnings, data logging
• Available SKUs and key dimensions:

  • S19RS-34 — Thread 3/4", A = 248.0 mm (9.764 in), Adjustment = 124.0 mm (4.882 in)
  • S19RS-78 — Thread 7/8", A = 280.0 mm (11.024 in), Adjustment = 144.0 mm (5.669 in)
  • S19RS-100 — Thread 1", A = 315.0 mm (12.402 in), Adjustment = 174.0 mm (6.850 in)
  • S19RS-118 — Thread 1 1/8", A = 365.0 mm (14.370 in), Adjustment = 214.0 mm (8.425 in)
