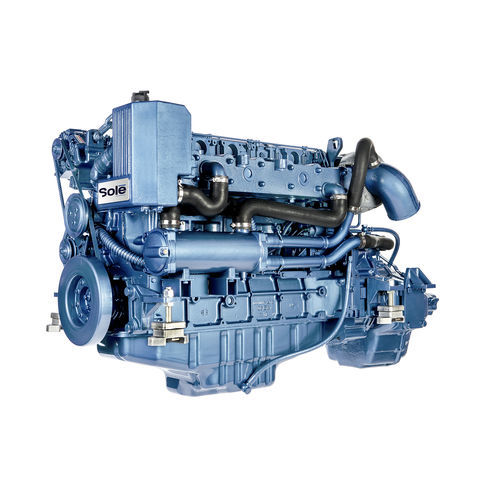

Ship engine SDZ-205 inboardpropulsiondiesel
Add to favorites
Compare this product
Characteristics
- Type
- inboard, propulsion
- Power source
- diesel
- Market
- professional vessel, for ships
- Technology
- turbocharged, direct fuel injection
- Engine type
- in-line
- Rotation direction
- left hand
- Pollution control standard
- Tier 1
- Other characteristics
- 4-stroke
- Power
196 ch
(196 hp)- Displacement
7,146 cm³
(242 US fl oz)- Number of cylinders
6 unit
- Engine speed
2,300 rpm
(14,451 rad.min-1)- Max. installation angle
10 °
- Bore
108 mm
(4.3 in)- Stroke
130 mm
(5.1 in)- Length
1,610 mm
(63 in)- Width
720 mm
(28 in)- Height
942 mm
(37 in)- Weight
650 kg
(1,433 lb)
Description
The SDZ-205 is a 6 cylinder marine engine with mechanical injection, turbocharged, assembled on 7.146 cc displacement DEUTZ block. It performs 195,5 hp at 2.300 rpm. The SDZ-205 is a marine engine specially designed to satisfy the highest requirement from the most demanding commercial boats. Provides a very smoothly navigation thanks to its 6 cylinder which allows to reach the best torque at low rpm and the lowest fuel consumption. This is the perfect engine for fishing boats between 9 and 10 meters with semi-displacement and displacement hulls. It has a wide range of configurations to satisfy the highest demands.
