boat fish finder / CHIRP
S2016

Add to MyNauticExpo favorites
boat fish finder / CHIRP boat fish finder / CHIRP - S2016
{{requestButtons}}

Characteristics

  • Application domain:

    for boats

  • Technology:

    CHIRP

Description

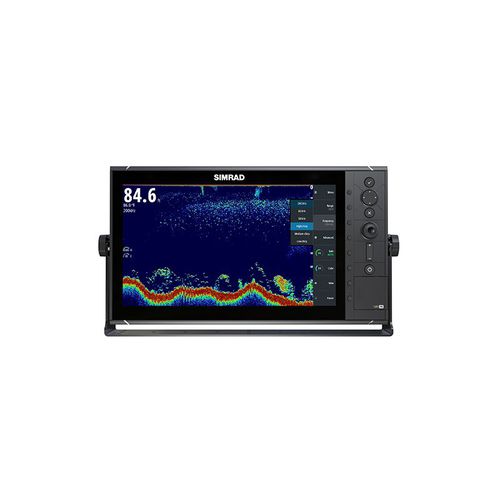

S2016 Fish Finder

Product details
Integrated CHIRP Echosounder
S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer.

16-inch Widescreen Display
The S2016 offers a combination of excellent vertical detail and a lengthy on-screen echosounder history, with a high-definition 16-inch widescreen display. This reduces your need to zoom or scroll, while making it easy to backtrack to promising areas. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features.

Networking & Expansion
It’s easy to share sonar data with other Simrad displays over an Ethernet network. S2000 series fish finders can also be used as dedicated displays for the built-in sonar module on Ethernet-connected Simrad multifunction displays, freeing your main display for other purposes such as navigation or radar.

Key Features
Integrated 16-inch widescreen HD display
Dual-display mirroring option with HDMI output
High depth penetration and ping speed
Simple operation with 8 direct-access menu keys
Customise your view to highlight targets of interest
Bracket or flush-mount installation (bracket included)
