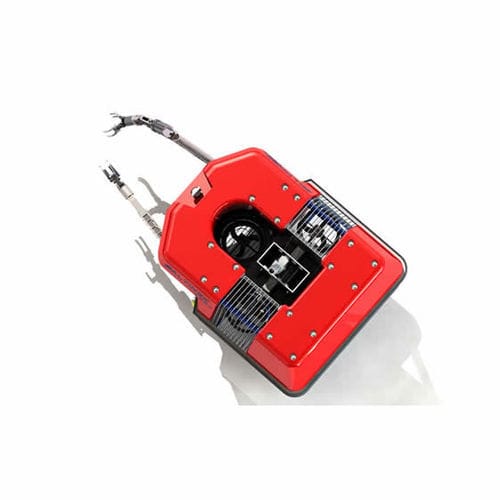

Intervention underwater ROV 125 HP WORK CLASS

intervention underwater ROV
intervention underwater ROV
Add to favorites
Compare this product


Characteristics

Type
intervention
Maximum depth

1,000 m (3280'10")

Length

250 cm (98 in)

Width

145 cm (57 in)

Height

180 cm (71 in)

Weight

2,400 kg (5,291 lb)

Payload

150 kg (331 lb)

Description

This Rov is a new build and comes as a complete operational package with vehicle, control cabin, and LARS. Operational depth options are 1000m (2000m depth option available). TMS not included but available as an optional extra. Performance Forward 700 kgf 3.5 knots , Lateral 550 kgf 3.0 knots, Vertical 500 kgf 1.5 knots Payload of Standard Vehicle 150 kgs . Optional Additional Payload 50 kgs Through Frame Lift 2,500 kgs Propulsion System 7 350mm diameter 10kw/13.5hp hydraulic thrusters individually servo valve controlled Vectored 4 x 350 mm Ø thrusters Vertical 3 x 350 mm Ø thrusters Standard Power Pack 125hp (175HP available). 94kw/125hp shaft output power, 3 phase, 4 pole, 3KV motor, oil filled and compensated. Vickers piston pump, output 220lpm @ 200bar.
