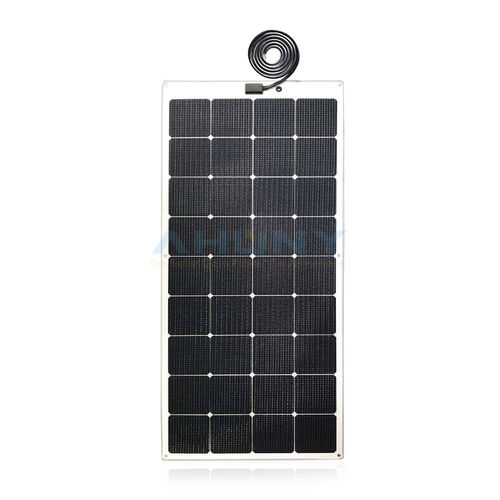

Semi-flexible solar panel eMarvel-135wmonocrystalline siliconfor boat
Add to favorites
Compare this product
Characteristics
- Structure
- semi-flexible
- Material
- monocrystalline silicon
- Other characteristics
- for boat
- Peak power (Wp)
135 W
- Voltage at maximum power
22.6 V
- Max power current (Imp)
6 A
- Open circuit voltage (Voc)
26 V
- Short circuit current (Isc)
6.3 A
- Weight
5.2 kg
(11.5 lb)- Length
550 mm
(22 in)- Width
1,220 mm
(48 in)- Thickness
5 mm
(0 in)
Description
Our walkable solar panels with an output of 135W are the perfect solution for powering an electric car sustainably. These innovative panels are designed to withstand foot traffic and can be installed as a carport or on a roof to charge your electric car with clean, renewable energy.
Power tolerance[ - ±3%
NOCT[ - 45±2
Operating Temperature[ - -40/+85
Temperature Coefficient Pmax[%/K] - -0.3
Temperature Coefficient Voc[[%/K] - -1.74mV
Temperature Coefficient Isc[[%/K] - 0.05
Maximum System Voltage[V] - 1000 V
Maximum Reverse Current[V] - 20A
Certification - CE ROHS ISO 9001
Surface/Backsheet - Glass/silver frame/white backsheet
Cables and Connectors - Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector
Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C
