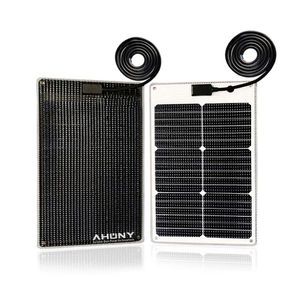

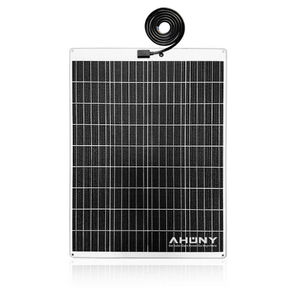

Semi-flexible solar panel eMarvel 160w
monocrystalline siliconfor boats

semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
Add to favorites
Compare this product


Characteristics

Structure
semi-flexible
Material
monocrystalline silicon
Other characteristics
for boats
Peak power (Wp)

160 W

Voltage at maximum power

27.5 V

Max power current (Imp)

5.8 A

Open circuit voltage (Voc)

32.5 V

Short circuit current (Isc)

6.3 A

Weight

6.7 kg
(14.8 lb)

Length

660 mm
(26 in)

Width

1,220 mm
(48 in)

Thickness

4 mm
(0 in)

Description

Walkable and Anti-slippery By any means and do not damage cells,the rough antislippery surface is safer for installation or maintenance. High temp resistance and little power loss The surface material resists high temperature Flame Rigid,thin,light design for widely use It’s rigid to resist hailstone,semi flexible with bend angle less retardancy UL94 VTM-0.Rugged and insulated bottom reduces area touched surface of yacht,RV,cart etc.Enables air circulation,it cools down panel and get little power loss. 5 degree,suitable for off grid use,marine,yacht,RV roof,on grid home system,parking lot,portable power generator etc. Warranty ☆ 3 years quality insured,free replacement,maintenance ☆ 10 years power output more than 90% ☆ 25 years power output more than 80% Longer lifespan 15years guaranteed Premium weather or moisture resistance,for harsh environment 15years life guaranteed,over 25years lifespan. AHONY eMarvel series uses leading Japan raw material,high efficiency A grade solar cells and automatically producing machine. Product Name - Solar Panel 150w Waterproof Rigid High Efficiency Mono Cell with PET ETFE Surface. Solar Cell - SunPower Cell Cell Array[Pcs] - 5*9 Cell Efficiency - 22.6% Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.44 Temperature Coefficient Voc[[%/K] - -0.33 Temperature Coefficient Isc[[%/K] - 0.06 Maximum System Voltage[V] - 1000 V
