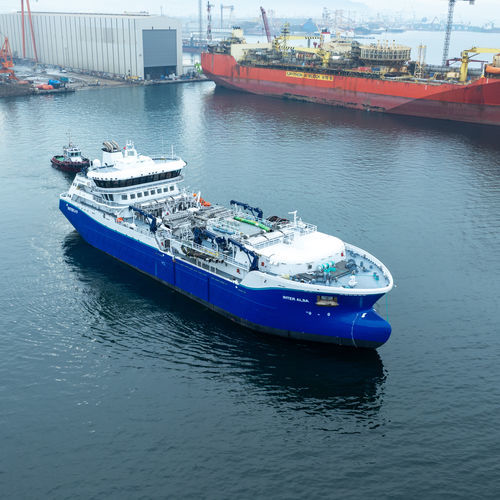

Live fish carrier aquaculture ship NB67

Bureau Veritas

Overview
NB67 is Sefine Shipyard's third largest live fish carrier and the second vessel contracted with Norwegian company Intership in 2022. With a 6,500 m³ capacity, this wellboat is configured to support sea farms and ensure fish welfare through continuous monitoring of oxygen, pH, ORP and sanitation. MMC equipment ensures internal fish circulation. During ship-to-ship and ship-to-farm transfers, life parameters such as temperature and stress are measured. These systems are supported by a 15,000 m³/24h reverse osmosis plant.

Propulsion, Power and Dynamic Positioning
The vessel is fitted with a diesel-electric machinery arrangement for propulsion and onboard electrical distribution. The installation includes a DP0 dynamic positioning system to enable station-keeping in variable environmental conditions without anchoring.

Design
The complex naval architecture and outfitting of NB67 were developed by SALT ship design company to meet operational requirements for live fish transport and handling.

Main specifications

• Length overall: 92.66 m
• Beam moulded: 22.40 m
• Design draught: 8.00 m
• Live fish holds: 6,500 m³
• Battery capacity: 1,000 kWh
• Powerplant: 5 x Yanmar 6EY22ALWS — 1,500 kW @ 900 rpm
• Propulsion: 2 x Brunvoll AUP100LNA2600 FPP — 2,150 kW @ 705 rpm
• RO capacity: 15,000 m³/24 h
• Cranes: 1 x telescopic fish-hose handling crane (120 tm); 3 x telescopic boom marine cranes (60 tm each)
• Fuel: MGO (Marine Gas Oil)
• Class: Bureau Veritas
• Flag: Norwegian Maritime Authority (NMA)
• Status: Under construction

Technical specifications

• Model name: NB67
• Type: Live Fish Carrier / Wellboat
• Capacity (live fish holds): 6,500 m³
• Length overall: 92.66 m
• Beam moulded: 22.40 m
• Design draught: 8.00 m
• Battery capacity: 1,000 kWh
• Main engines: 5 x Yanmar 6EY22ALWS, 1,500 kW @ 900 rpm
• Propulsion units: 2 x Brunvoll AUP100LNA2600 FPP, 2,150 kW @ 705 rpm
• Reverse osmosis plant capacity: 15,000 m³ per 24 h
• Cranes configuration: 1 telescopic fish-hose handling crane (120 tm) and 3 telescopic boom marine cranes (60 tm each)
• Fuel: Marine Gas Oil (MGO)
• Classification society: Bureau Veritas
• Flag authority: Norwegian Maritime Authority (NMA)
• Navigation/operational aid: DP0 dynamic positioning system
