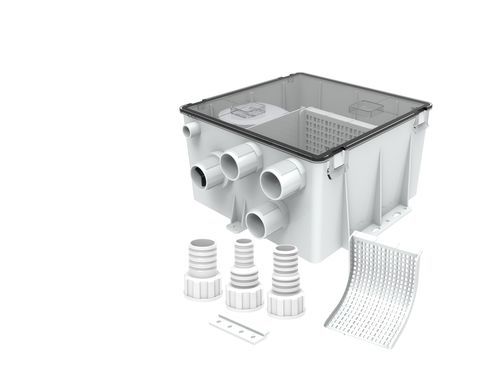

Boat shower drainage system SFBP1-G800-17A

Product overview
Shower Drain Box for marine and RV shower systems. Available in the 17A Series with SFBP1 and SFBP2 models offering selectable 800 GPH or 1200 GPH pumps and 12 V or 24 V operation.

Features & Benefits

• Optional 800 or 1200 GPH pump for reliable wastewater removal on boats and RVs
• Automatic water-level sensing for hands-free bilge/pump control
• Multiple inlet design accepts several drain sources
• Removable debris filter for quick maintenance
• Impact-resistant housing with gasketed construction to limit splash
• Integrated check valve at outlet to prevent backflow into the tank
• Rear foot mount for simplified installation and secure fastening

Standard configurations
Model | Voltage | Flow Rate | Current | Head | Wire Lead | Outlet Dia.
SFBP1-G800-17A | 12 V | 800 GPH | 3 A | 2.5 m / 8.0' | 1 m / 3.0' | 3/4" (19 mm) ; 1-1/8" (29 mm)
SFBP2-G800-17A | 24 V | 800 GPH | 1.5 A | 2.5 m / 8.0' | 1 m / 3.0' | 3/4" (19 mm) ; 1-1/8" (29 mm)
SFBP1-G1200-17A | 12 V | 1200 GPH | 4 A | 3 m / 10.0' | 1 m / 3.0' | 1" (25 mm) ; 1-1/8" (29 mm)
SFBP2-G1200-17A | 24 V | 1200 GPH | 2 A | 3 m / 10.0' | 1 m / 3.0' | 1" (25 mm) ; 1-1/8" (29 mm)

Technical specifications

• Series: 17A Series
• Models: SFBP1-G800-17A, SFBP2-G800-17A, SFBP1-G1200-17A, SFBP2-G1200-17A
• Flow rate options: 800 GPH or 1200 GPH
• Voltage options: 12 V or 24 V
• Current: 1.5 A to 4 A depending on model
• Maximum head: 2.5 m (800 GPH) or 3 m (1200 GPH)
• Wire lead length: 1 m / 3.0'
• Outlet diameters: 3/4" (19 mm), 1" (25 mm), 1-1/8" (29 mm)
• Removable debris filter; multiple inlets; integrated check valve
• Construction: impact-resistant material with gaskets
