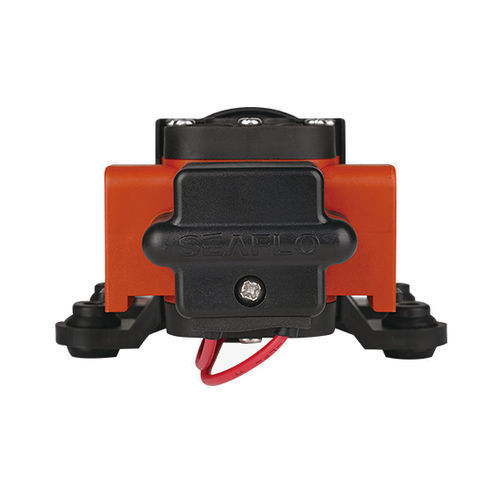

Boat pump 23C seriestransfercirculationwater
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats
- Applications
- transfer, circulation
- Fluid
- water
- Technology
- diaphragm
- Operation
- electric
- Voltage
- 24 V, 12 V
- Flow rate
1.9 l/min, 2.6 l/min, 3.8 l/min, 4.3 l/min, 5.6 l/min
(0.5 us gal/min, 0.69 us gal/min, 1 us gal/min, 1.14 us gal/min, 1.48 us gal/min)- Pressure
4.8 bar
(69.6 psi)- Height
65 mm
(3 in)- Length
163 mm
(6 in)- Width
102 mm
(4 in)
Description
SEAFLO 23 Series diaphragm pump is design for wider applications of liquid transfer, pressurization and circulation. 23 Series is compact design but flow rate is up to 1.5GPM (5.6LPM), and pressure is up to 120PSI (8.2Bar). 23 Series supports flexible customization. Firstly its control type can choose from demand, by pass, no switch, manual switch and any combination of these types. Secondly, with compatible fixtures, 23 series can easy connect to any industrial port. Thirdly, 23 series can be customized to use for water, chemicals and food grade.
MORE FEATURES & BENEFITS
• Continuous duty
• Can run dry
• Self-Priming
• Quite operation
• Long Life Pressure Switch
• Waterproof grade IPX54
• Multiple ports available
• On-demand pressure switch
• Adjustable pressure setting
• Capable of supplying 1-2 fixtures
• By pass technology reduces cycling
