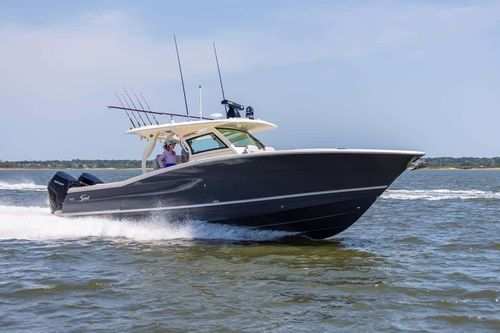

Outboard express cruiser 400 LXF Li-Ion

four-engineopencenter console

Overview
The 400 LXF Li-Ion is an S-Class center-console boat by Scout Boats featuring a lithium-ion battery management system that removes the need for an onboard generator. The model uses Carbon Epoxy Construction with a dual Scout Stepped Hull and includes SeaKeeper gyro stabilization as standard. Numerous factory and dealer options extend capability for offshore and luxury applications.

Key highlights

• Carbon Epoxy Construction (carbon fiber / E-Glass epoxy-infused hull)
• Lithium-ion battery management system — reduces reliance on generator power
• Standard SeaKeeper Gyro Stabilizer (SeaKeeper 3 DC standard; optional SeaKeeper 6)
• Digital helm with Garmin touchscreens in glass bezels
• Standard heated helm seats
• Hydraulic port-side beach platform with synthetic teak
• Available electronically-actuated articulating rocket launchers (integrates with SureShade)
• Patent-pending electronically-actuated hideaway entertainment station / mezzanine seat with sink, cutting board, grill and storage
• Optional convertible leaning post with Kenyon grill, sink and cutting board

Standard Equipment / Notable Options

• Lithium-ion batteries and management system — generator not required
• SeaKeeper gyro stabilizer system (SeaKeeper 3 DC standard)
• Epoxy-infused carbon fiber / E-Glass hull construction
• Digital helm with touchscreen integration
• Heated helm seats
• Articulating rocket launchers with SureShade integration (option)
• Convertible hideaway entertainment station / mezzanine seat (patent-pending option)
• Convertible leaning post with Kenyon grill, sink and cutting board (option)

Dimensions & Capacities
Length: 39' 7" (12.0 m)
Beam: 12' 1" (3.7 m)
Fuel Capacity: 395 gal (1,495 L)
Max HP: 1,700 HP (1,268 kW)
Draft (approx): 27" (0.7 m)

Technical specifications

• Commercial designation: 400 LXF Li-Ion
• Manufacturer / Brand: Scout Boats
• S-Class model: Yes
• Dry weight without engines (approx): 14,940 lbs / 6,777 kg
• Dry weight with twin Mercury 600s (approx): 17,460 lbs / 7,920 kg
• Fresh water tank: 51 gal / 193 L
• Waste tank: 16 gal / 61 L
• Baitwell capacity: 66 gal (2 x 33 gal) / 250 L (2 x 125 L)
• Aft fish box port/stbd capacity: 92.5 gal / 350 L
• Cabin standing room height: 6' 4" / 1.93 m
• Head standing room height: 6' 3" / 1.9 m
• Berth sleeping length: 6' 5" / 1.95 m
• Deadrise: 22 degrees
• NMMA Certified / Yacht Certified: Yes
• Hull construction: Epoxy-infused hull using carbon fiber / E-Glass
• Standard gyro stabilizer: SeaKeeper 3 DC (optional SeaKeeper 6)
• Max power rating: 1,700 HP (1,268 kW)
• Fuel capacity: 395 gal (1,495 L)
• Length overall: 39' 7" (12.0 m)
• Beam: 12' 1" (3.7 m)
• Draft (approx): 27" (0.7 m)
