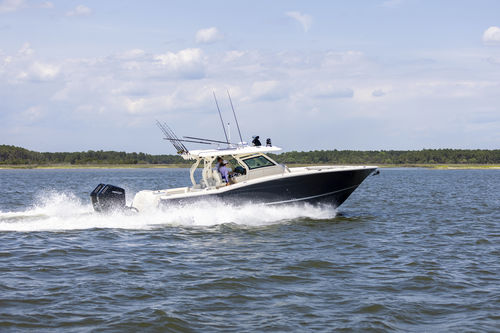

Outboard express cruiser 400 LXF

twin-engineopencenter console

Overview
The Scout 400 LXF is an S‑Class center-console designed for offshore fishing and day cruising. It combines precision naval architecture and integrated on-deck systems to support serious fishing operations and comfortable underway use. Standard SeaKeeper gyro stabilization and a hydraulic port-side beach platform enhance onboard stability and boarding access.

Construction & Class
S‑Class denotes Scout’s top-tier lineup for models 33' and up. The 400 LXF features Carbon Epoxy Construction (carbon fiber/E‑Glass epoxy infusion) and Scout’s dual Stepped Hull Technology for improved performance, structural stiffness and a refined finish.

Key Features

• Epoxy-infused hull using Carbon Fiber/E‑Glass for enhanced structural stability, strength and finish
• Standard SeaKeeper 3 DC Gyro Stabilizer (option to upgrade to Seakeeper 6)
• Patented electronically-actuated articulating rocket launchers (hardtop-mounted, electronically raise/lower)
• Electronically-actuated convertible hideaway entertainment station / mezzanine seat: aft-facing mezzanine and footrest fold to reveal hidden sink, cutting board, grill, tackle drawer and storage
• Convertible leaning post with integrated Kenyon grill, sink and cutting board (optional)
• Digital helm with Garmin displays in glass bezels for integrated control of navigation and systems
• Standard heated helm seats
• Standard hydraulic port-side beach platform with synthetic teak

Standard Equipment (selected)

• Epoxy-infused hull (Carbon Fiber/E‑Glass)
• Digital Helm (Garmin displays with glass bezels)
• Heated helm seats
• Integrated SeaKeeper Gyro Stabilizer (Seakeeper 3 DC standard)

Optional Equipment (selected)

• Seakeeper upgrade to Seakeeper 6
• Articulating rocket launchers with SureShade integration
• Convertible hideaway entertainment / mezzanine seat (patent-pending)

Experience & Design
The 400 LXF pairs high-performance naval architecture with refined finishes and functional onboard amenities. Layout options include fold-away entertainment and fishing features designed to maximize deck usability while maintaining clean lines and a high level of fit and finish.

Technical specifications

• Model designation: 400 LXF
• Length: 39' 7" (12.0 m)
• Beam: 12' 1" (3.7 m)
• Fuel Capacity: 395 gal (1,495 L)
• Max HP: 1,700 HP (1,268 kW)
• Draft (approx): 27" (0.7 m)
• Dry Weight without engines (approx): 14,940 lbs (6,777 kg)
• Dry Weight with Twin Mercury 600s (approx): 17,460 lbs (7,920 kg)
• Diesel Tank (auxiliary): 18 gal (68 L)
• Fresh Water Tank: 51 gal (193 L)
• Waste Tank: 16 gal (61 L)
• Baitwell Capacity: 66 gal (2 x 33 gal) / 250 L (2 x 125 L)
• Aft Fish Box (port/stbd): 92.5 gal (350 L)
• Cabin Standing Room Height: 6' 4" (1.93 m)
• Head Standing Room Height: 6' 3" (1.9 m)
• Berth Sleeping Length: 6' 5" (1.95 m)
• Deadrise: 22 degrees
• S-Class Model: Yes
• NMMA Certified / Yacht Certified: Yes
