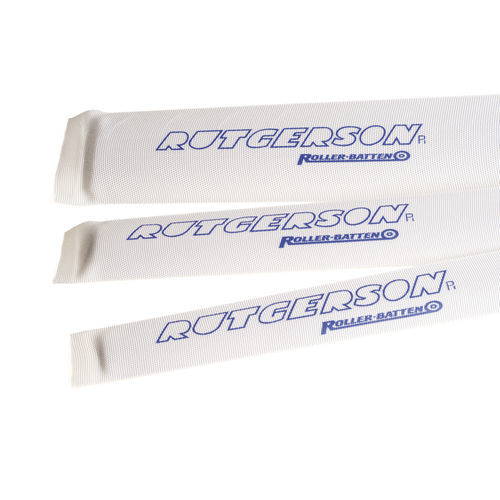

Leech batten 31 series

mainsailfurlingstainless steel

Description
Rutgerson Roller Battens are a widely used solution for furling sails worldwide. Originally an innovation from Rutgerson, the range now covers multiple sizes. The roller batten rolls up smoothly on furling systems and permits use of a roller furl cover; it is also suitable for furling mainsails. Two versions are available: standard and reinforced (reinforced models indicated by suffix R).

Technical data (table)
Part no | Description | Width (mm) | Length (mm) | Weight [g] | Recommended Boatsize | Packed per
3141-030 | Roller Batten | 40 | 300 | 53 | <32ft | 5
3141-040 | Roller Batten | 40 | 400 | 70 | <32ft | 5
3141-050 | Roller Batten | 40 | 500 | 87 | <32ft | 5
3141-060 | Roller Batten | 40 | 600 | 102 | <32ft | 5
3151-050 | Roller Batten | 50 | 500 | 118 | 30-40ft | 5
3151-060 | Roller Batten | 50 | 600 | 145 | 30-40ft | 5
3151-070 | Roller Batten | 50 | 700 | 166 | 30-40ft | 5
3171-070 | Roller Batten | 70 | 700 | 235 | >37ft | 3
3171-080 | Roller Batten | 70 | 800 | 270 | >37ft | 3
3171-090 | Roller Batten | 70 | 900 | 290 | >37ft | 3
3171-140 | Roller Batten | 70 | 1400 | 360 | >37ft | 2
3141-030R | Roller Batten reinforced | 40 | 300 | 85 | <40ft | 5
3141-040R | Roller Batten reinforced | 40 | 400 | 112 | <40ft | 5
3141-050R | Roller Batten reinforced | 40 | 500 | 140 | <40ft | 5
3141-060R | Roller Batten reinforced | 40 | 600 | 163 | <40ft | 5
3151-050R | Roller Batten reinforced | 50 | 500 | 190 | 40-50ft | 5
3151-060R | Roller Batten reinforced | 50 | 600 | 230 | 40-50ft | 5
3151-070R | Roller Batten reinforced | 50 | 700 | 265 | 40-50ft | 5

Characteristics / technical specifications

• Product name: Rollerbatten
• Manufacturer / Brand: Rutgerson Marin
• Function: Batten designed to roll up smoothly on furling systems; allows use of roller furl cover; also suitable for furling mainsails
• Versions: standard and reinforced (reinforced indicated by suffix R)
• Core construction: standard = two curved battens; reinforced = four curved battens (Swedish stainless steel)
• Material: Swedish stainless steel (allows controlled bending but has a limit)
• Bend limitation: do not bend to a radius smaller than approximately 50 mm — permanent damage may occur
• Range of sizes: widths 40 mm, 50 mm and 70 mm; lengths from 300 mm up to 1400 mm (see technical data table above for exact part numbers and dimensions)
• Weights: approx. 53 g to 360 g depending on model (see table)
• Recommended boat sizes: from <32ft up to >37ft depending on model
• Packing quantities: typically 5, 3 or 2 pieces per pack depending on model
