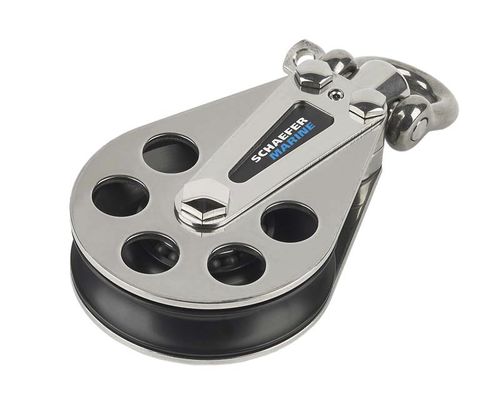

Ball bearing block 10-05-UCsinglewith swivelmax. rope ø 16 mm

ball bearing block
ball bearing block
Add to favorites
Compare this product
indicative price

Characteristics

Type
ball bearing
Number of sheaves
single
Configuration
with swivel
Maximum line diameter
max. rope ø 16 mm
Application domain
for sailboats
Material
stainless steel
Working load

1,750 kg (3,858.1 lb)

Description

10 Series Single Block with Stainless Steel cheeks and Aluminum "universal circuit" ball bearing sheave. Aluminum sheave run on Delrin(tm) ball bearings for a very strong yet low-friction sheave. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Bolted construction allows for easy maintainence. Sheave Dia. 3-1/4" (83mm), Thickness 1-7/32"(31mm), Width 3-1/4" (83mm), Length 6-19/32" (167mm), SWL 3750 lbs (1750kg), Weight 1 lb 11 oz (765g), Max Line 5/8" (16mm)
