Passenger boat 30 FRP

water taxioutboardfiberglass

Overview

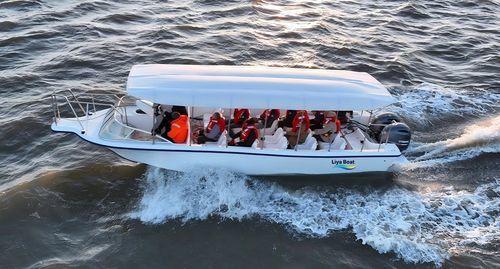

The Liya Boat 9.18m (30ft) passenger boat is a commercial-grade fiberglass vessel engineered for sightseeing, water-taxi and short-route ferry operations. Certified for a standard 20-passenger layout, it features a foam-filled hull, PVC-cored fiberglass deck and customizable helm and seating arrangements to match operator requirements.

Key Selling Points

• Certified passenger configuration for sightseeing, water taxi and short ferry services.
• Foam-filled hull for structural strength, stability and positive buoyancy.
• Choice of helm layouts (center console or starboard console) to suit operational needs.
• Integrated 500 L fuel tank for extended daily range and reduced refueling stops.
• PVC-cored fiberglass deck: rot-proof, waterproof and low maintenance.

Structure & Construction
The hull incorporates longitudinal and transverse frames filled with closed-cell foam, produced by vacuum infusion to optimize the strength-to-weight ratio. The deep V hull improves wave-piercing and seakeeping, delivering a stable and comfortable ride in typical coastal and harbor conditions.

Propulsion & Range
Available for single or twin outboard configurations. Recommended power: 300–400 HP (typical operational range); maximum power: 400–500 HP. The 500 L integrated fuel tank supports long daily operations with fewer refueling interruptions.

Passenger-Focused Design

• Standard 20-seat arrangement with configurable bench or individual seat options; seating can include personal storage and backrests for 1–2 hour tours.
• Full stainless-steel safety railings, forward windshield and stern swim platform included as standard.
• Optional large sun canopy (bimini), PA system and alternate seating layouts for operator customization.

Operational Use Cases

• Guided marine sightseeing and eco-tourism excursions.
• High-frequency water taxi and port passenger transfers.
• Island hopping and short-distance ferry services.
• Private charters and event group transport.

Features

• Self-draining, anti-slip deck surface.
• Foam-filled longitudinal and transverse keel structure to reduce vibration and noise.
• PVC-cored fiberglass deck—lightweight, durable and waterproof.
• Deep V vacuum-infused hull for improved seakeeping.
• 3-year warranty on construction and materials.

Main Configurations & Accessories

• Customizable cockpit and seating (bench, tour-style or mixed layouts).
• Optional live well and large storage boxes for multi-role use.
• Standard navigation lighting: masthead, anchor, port/starboard navigation lights; searchlight; stern deck light; switches and electric horn.
• Standard stainless-steel railings and standard swim platform; ladder optional.

Warranty & Certification
Manufactured by an ISO-certified builder to commercial construction standards. Vessel is prepared for local commercial passenger certification; final classification and certification are arranged by the buyer or local naval architect depending on fit-out and intended use.

Technical Specifications

• Model: 9.18 m passenger boat
• Commercial name: Liya 30ft Passenger Boat
• Brand: Liya Boat
• Code: 8903.190000
• Certified capacity: 20–22 persons (standard 20-passenger layout)
• Engine shaft: XL 25'
• Recommended power: 300–400 HP (single or twin outboard)
• Max power: 400–500 HP
• Fuel tank: 500 L integrated
• Hull: Foam-filled fiberglass deep V hull, vacuum infused
• Deck: PVC-cored fiberglass deck (rot-proof, waterproof)
• Standard safety: Stainless steel railings, forward windshield, stern swim platform
• Warranty: 3 years (construction/materials)
