Outboard day fishing boat LY 45 FRP

twin-engineplaning hullwheelhouse

Overview

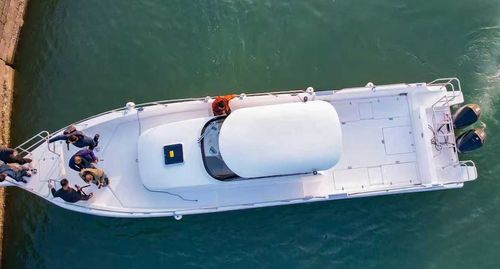

The Liya LY 45FRP is a 13.6 m (45 ft) fiberglass cabin boat designed to serve as both a commercial fishing platform and a passenger tour vessel. With a shallow draft of 0.5 m and an empty hull weight of 5 t, the hull supports a full displacement of 8.3 t and a maximum payload of 3.3 t. The enclosed cabin provides all-weather protection and improved operational endurance for coastal, nearshore and shallow-water operations.

Key selling points

• Fully enclosed cabin for all-weather passenger protection, seating for up to 12 persons.
• Shallow 0.5 m draft enabling beach landings and access to shallow bays and rivers.
• High payload-to-weight ratio: 3.3 t maximum load on a 5 t hull.
• Versatile configuration for passenger tours, commercial fishing and bulk cargo transfer.
• Fiberglass deep-V hull for enhanced stability and seaworthiness in coastal/offshore conditions.

Technical parameters (table)
Model: LY 45FRP
Brand: Liya Boat
Length overall: 13.6 m / 45 ft
Width overall: 3.15 m / 10.4 ft
Moulded depth: 1.07 m
Draft: 0.5 m
Full displacement: 8.3 t
Max loading (payload): 3.3 t
Weight (hull): 5 t
Seating capacity: 12 persons
Outboard engine - Recommended / Max power: 600 HP (typical) — up to 900 HP (single or twin)
Transom height: 76 cm
Primary uses: passenger tours, commercial fishing, beach landing/workboat, bulk cargo transfer
Certifications: Built to ISO standards

Capabilities & operations
The LY 45FRP combines shallow-draft access with a high payload capability, allowing direct shore offloading and transport of supplies or equipment to remote coastal locations. The enclosed cabin reduces crew fatigue and protects equipment and passengers from sun, rain and spray. For safe operation, distribute cargo evenly to maintain trim, verify transom reinforcement for high-horsepower installations and perform routine inspections of hull, propulsion and steering systems.

FAQ (selected product-relevant answers)

• Q: Can the 0.5 m draft handle coastal passages? — A: The deep-V fiberglass hull and 8.3 t loaded displacement provide good stability and seaworthiness for coastal and nearshore operations while still enabling access to shallow bays and beaches.
• Q: Is the boat suitable for bulk cargo transfer as well as passengers? — A: Yes. Reinforced deck area and a 3.3 t payload capacity accommodate supplies, gear or light bulk cargo for transfers and shore deliveries.
• Q: What engine configurations are possible? — A: The hull is rated up to 900 HP total; options include single high-power outboard or twin engines for redundancy and improved maneuverability. Structural reinforcement of the transom is required for maximum power setups.

Characteristics / specifications

• Model: LY 45 FRP
• Brand: Liya Boat
• Length overall: 13.6 m / 45 ft
• Width overall: 3.15 m / 10.4 ft
• Moulded depth: 1.07 m
• Draft: 0.5 m
• Full displacement: 8.3 t
• Max loading (payload): 3.3 t
• Hull (empty) weight: 5 t
• Seating capacity: 12 persons
• Recommended engine power: 600 HP (typical); maximum up to 900 HP (single or twin, requires reinforcement)
• Transom height: 76 cm
• Primary uses: passenger tours, commercial fishing, beach landing/workboat, bulk cargo transfer
• Certifications: Built to ISO standards
