Passenger boat

dieseloutboardfiberglass

Overview

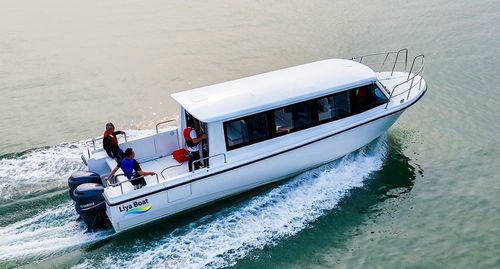

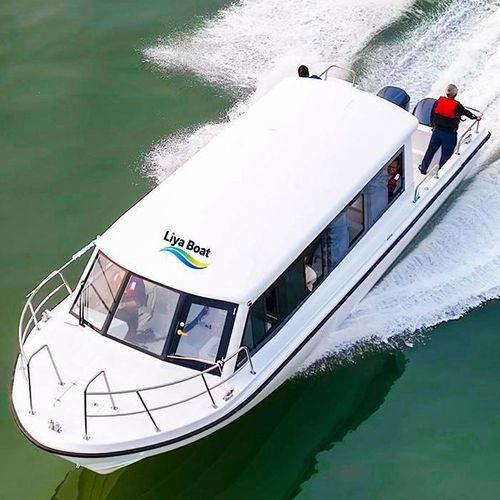

The Liya 37ft enclosed-cabin fiberglass passenger ferry is a commercial-grade 11.19 m vessel designed for scheduled passenger transport, sightseeing, floating-restaurant/event conversion or leisure charters. It combines a foam-filled double-hull and resin-infusion construction with a configurable fully enclosed cabin and large fuel capacity for extended operations.

Key Selling Points

• Fully enclosed cabin with front/rear/side doors and windows; standard fit includes 30 installed seats (22 passengers recommended for comfort).
• Foam-filled double-hull with longitudinal and transverse framing for rigidity, buoyancy, reduced noise and insulation.
• Main fuel tank 1000 L plus separate 200 L diesel tank for generator to support full on-board amenities.
• Resin infusion hull lamination and PVC-cored deck for strength, waterproofing and low maintenance; 5-year structural warranty on hull.
• Flexible propulsion options: single or twin, inboard or outboard; typical recommendation 2×250 HP, max 2×300 HP (confirm with factory).

Use Cases / Configurations
This 11.19 m platform is configurable for multiple revenue models and service types:

• Sightseeing & day-tour passenger vessel
• Floating restaurant or event venue
• Leisure fishing and adventure charter
• Scheduled passenger ferry and water shuttle
• Private corporate or group charter

Design & Hull
The hull form is based on a marine workboat profile with a wide beam and shallow deadrise for strong initial stability, high payload and efficient planing in shallower waters. Foam-filled double-hull and framed structure reduce vibration and improve safety and insulation.

Deck & Structure
PVC-cored deck (no wood) provides a lighter, fully waterproof, rot-proof surface. Hull and deck are manufactured by resin infusion to ensure consistent laminate quality and long-term durability. Interior uses a clean inner hull for a tidy, functional cabin layout.

Cabin & Amenities
Fully enclosed cabin accommodates configurable seating (30 seats installed; 22 recommended), helm station and optional amenities: enclosed head (toilet), open galley, dining table, air conditioning, refrigerator, TV, generator and optional solar panels. Stern boarding doors port and starboard improve passenger flow. Deck fittings include heavy-duty mooring bitts, anchor lockers, storage boxes and full safety railings.

Activity-specific Add-ons

• Rod holders and fishing fixtures for charter fishing operations.
• Interchangeable interior layouts for switching between tour seating and dining/table arrangements.
• Optional fore and aft safety railings and other commercial fittings.

Features & Benefits

• Self-draining, anti-slip deck surface.
• Foam-filled double-hull for buoyancy, noise reduction and thermal insulation.
• PVC-cored fiberglass deck: lighter, waterproof, rot-proof and low maintenance.
• Resin infusion laminates for consistent high-strength construction.
• 5-year structural warranty on hull.
• Large fuel capacity enabling extended day operations with full amenities.

Multimedia
Product page includes video content and cabin/layout imagery showing seating, galley options and hull cross-sections.

Technical Specifications

• Model (commercial name): Liya 37ft Enclosed Cabin Passenger Ferry Boat
• Commercial denomination: 11.19 m passenger boat
• Overall maximum length: 11.92 m / 39 ft
• Hull length: 11.19 m / 37 ft
• Waterline length: 10.0 m / 33 ft
• Maximum beam: 3.3 m / 10.9 ft
• Beam of hull: 3.2 m / 10.6 ft
• Maximum depth: 1.55 m / 5.1 ft
• Maximum draft: 0.535 m / 1.75 ft
• Loaded displacement: 8.398 ton
• Deck height: 0.83–0.86 m
• Net weight (hull without engines, empty tanks): ~4,500 kg (depending on configuration)
• Deadrise (V-angle): 18°
• Design category: B
• Certified seating installed: 30 seats; recommended capacity: 22 passengers
• Typical crew/capacity reference: 22 persons
• Main propulsion recommended: twin engines, 2×250 HP typical; maximum 2×300 HP (confirm with factory)
• Transom height example: ~66 cm
• Fuel system: main tank 1000 L; separate diesel tank 200 L for generator
• Maximum speed (approx): ~32 knots depending on engine selection & load
• Construction: fiberglass hull with resin infusion, PVC-cored deck, foam-filled double-hull with longitudinal & transverse framing
• Standard fit: enclosed cabin, helm station, seating (30 pcs with under-seat storage), railings, lighting, self-draining deck, heavy-duty bollards, anchor boxes, storage boxes
• Options: enclosed head, open galley, dining table, air conditioning, refrigerator, TV, generator, solar panels, rod holders, fore/aft railings and other commercial fittings
• Warranty: 5-year structural warranty (manufacturer stated)
• Lead time (typical): ~14–18 weeks for fully outfitted custom configuration from deposit and final design approval
