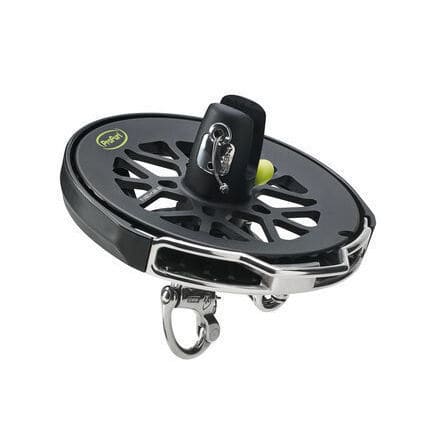

Sailboat furler NEX4.0V2R

spinnakerracingfor regattas

Description
The NEX flying-sail furler integrates numerous innovations and technological improvements developed by Profurl since the first NEX in 2010, delivering improved performance, safety and comfort at sea. The SPEED version features a reduced spool diameter optimized for faster furling and is particularly suited to sport and offshore racing (e.g. Class40).

Technical description
Why choose a NEX furler?

• Performance: faster furling, reduced weight and optimized footprint
• Comfort and safety during furling/unfurling operations
• Ratchet (FurlAssist) for controlled furling to prevent accidental unfurling; bidirectional operation without extra lines
• Ease of use: simple installation and intuitive sail handling
• Reliable, proven and maintenance-free technology
• Wide range of end fittings to adapt to deck layout
• Modern product design

Components
The product includes one spool and one swivel. It is delivered without terminals by default (typical terminals: upper D shackle, lower clevis pin snap shackle); end fittings are available as options.

Technical specifications

• Navigation program: Racing, offshore racing
• Light sail area (m²): 140
• Ratchet: Yes (FurlAssist)
• Working load: 4000
• Spool diameter (mm): 180
• Pin diameter (mm): 12
• Furling line diameter (mm): 10
• Weight (g): 1.63
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Warranty: 3 years
• Options available: Eye, halyard block, MXEVO halyard shackle, solidsheave, swivel lock 4.0T
• Dimensions: A (mm): 118; B (mm): 192; C (mm): 19; D (mm): 82.7; E (mm): 50; F (mm): 33; G (mm): 12

Product details

• Displayed product reference: NEX4.0V2RSPEED
• Model: Speed (reduced spool diameter for faster furling)
• Ratchet function: FurlAssist (bidirectional)
• Intended use: racing and offshore (e.g. Class40)
• Wide range of terminals and options to adapt to deck layout
