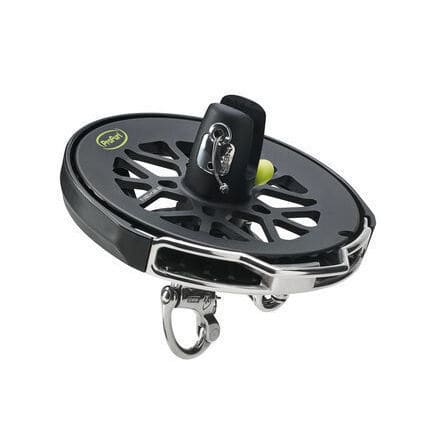

Sailboat furler NEX2.5V2R

spinnaker8 mmracing

Description
The NEX flying sail furler integrates multiple innovations and technological improvements derived from the experience gained since the first NEX in 2010. These developments increase performance, safety and ease of use when handling flying sails.

Technical description

• Optimized for speed of furling with reduced spool diameter, weight and footprint
• Improved comfort and safety during furling and unfurling operations
• Ratchet (FurlAssist) for controlled furling, preventing accidental unfurling; operates in both directions without extra lines
• Easy installation and fast, intuitive sail trimming
• Reliable, proven and maintenance-free technology
• Wide range of end fittings for deck layout adaptation
• Contemporary product design

Components

• One spool
• One swivel
• One snap shackle (lower terminal)
• One D shackle (upper terminal)

Technical information

• Sailing program: Racing, offshore racing
• Light sail area (m²): 80
• Ratchet: Yes
• Working load: 2500
• Spool diameter (mm): 150
• Pin diameter (mm): 10
• Furling line diameter (mm): 8
• Weight (g): 0.98
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Warranty: 3 years
• Options available: Eye, halyard block, MXEVO halyard shackle, solidsheave, swivel lock 2.5T

Dimensions (mm)
A: 97
B: 160
C: 18
D: 68.3
E: 42
F: 26
G: 10

Technical specifications

• Sailing program: Racing, offshore racing
• Light sail area: 80 m²
• Ratchet: Yes (FurlAssist)
• Working load: 2500
• Spool diameter: 150 mm
• Pin diameter: 10 mm
• Furling line diameter: 8 mm
• Weight: 0.98 g
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Warranty: 3 years
• Options: Eye, halyard block, MXEVO halyard shackle, solidsheave, swivel lock 2.5T
• Dimensions (A–G in mm): A=97, B=160, C=18, D=68.3, E=42, F=26, G=10
