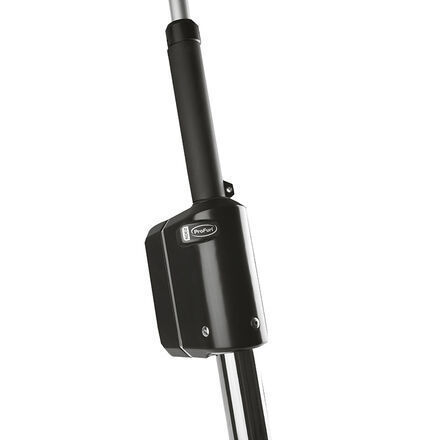

Sailboat furler NDH2C480

headsailgenoamotorized

Description
The NDH2C480 hydraulic furling system is a motorized forestay furler designed for cruising yachts from 14.50 to 18.50 m. Based on Profurl experience in gearmotors over 30 years, it is supplied as a motorization kit and is intended to provide safe, cockpit-operated furling suitable for short-handed or solo sailing.

Benefits of the motorized systems

• Effortless sail handling with motorized operation
• Improved safety: all operations possible from the cockpit
• Ideal for short-handed or single-handed sailing
• Low noise during operation
• Easy installation on the existing forestay
• Sail can be furled in either direction
• Hydraulic motor connects to ship hydraulic pack via two supply hoses with female 7/16’’ JIC fittings
• Maintenance-free drive train
• Can convert a manual furler into a motorized furler
• Emergency manual operation via handle socket in case of system failure
• 3-year worldwide limited warranty

Proven reliability

• Over 30 years of experience in gearmotor reducer design
• NDH2 reducer architecture based on more than 20 years of development
• High-quality material selection for long service life
• Surface treatments chosen for effective corrosion resistance
• Robust extrusions designed to withstand high torque loads
• Ventilation prevents internal condensation

Performance

• Motor system engineered for quick, repeated manoeuvres
• Optimal torque/speed ratio for furling and unfurling in varied sailing conditions
• Low hydraulic power consumption—no special batteries required

Ease of installation

• Adjustable to fit the existing forestay
• Available in several mounting configurations (stainless steel tube or link plates) to suit deck layout
• Turnbuckle cylinder travel increased by 100 mm on C520, C530, C600 models (for Ø 22 mm single-turn forestay turnbuckles)

Modern design

• Updated design complements modern deck layouts and sail plans
• Supplied as standard with a motorization kit, full set of grey rounded extrusions, swivel and turnbuckle cylinder; stainless steel tube supplied as standard

Components
This product includes a motorization kit, a complete set of grey rounded extrusions, a swivel and a turnbuckle cylinder. Supplied as standard with a stainless steel tube.

Technical specifications

• Sailing program: Cruising
• Boat length (m): From 14.50 to 18.50
• Sails type: Genoa, solent
• Structural system: No
• Partial furling of the sail: Yes
• Motorization type: Hydraulic
• Optimal torque (Nm): 300
• Maximum operating pressure (bar): 140
• Maximum torque (Nm): 30
• Maximum flow recommended (L/min): 15
• Max forestay dia (mm): 14.3
• Standard length (m): 18
• Extrusion length (m): 2
• Warranty: 3 years
