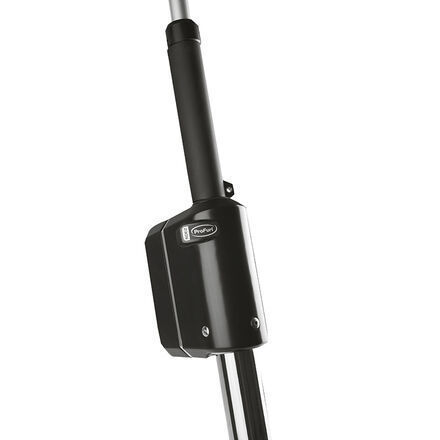

Sailboat furler NDH2C530

for cruising sailboatsheadsailgenoa

Description
Hydraulic furlers Profurl NDH2C530 provide safe, easy and reliable sail handling for cruising yachts. Developed from Profurl expertise accumulated over 30 years, this model is designed for yachts of 18.50–22 m and is specifically adapted for genoa and solent furling.

Technical description

• Smooth, low-effort operation from the cockpit
• Enables safe handling for short-handed or solo sailing
• Quiet operation for improved onboard comfort
• Easy installation on the existing forestay
• Sail can be furled in either direction
• Gear motor connects to hydraulic pack via two supply hoses with female 7/16’’ JIC fittings
• Low maintenance
• Can convert a manual furler into a motorized unit
• Emergency safety system with handle socket
• 3-year worldwide limited warranty

Proven reliability

• Over 30 years of gearmotor reducer design experience
• Reducer architecture based on more than 20 years of NDE system development
• High-quality materials selected for durability and long service life
• Surface treatments chosen for effective corrosion resistance
• Robust extrusions to withstand high torsional loads
• Venting prevents internal condensation

Performance

• Motor system designed for quick, repeatable sail manoeuvres
• Optimised torque/speed ratio for furling and unfurling in varied conditions
• Low power consumption — compatible with typical onboard hydraulic supplies

Ease of installation

• Adjustable to fit your existing forestay
• Available in multiple assembly configurations (stainless steel tube or link plates) to suit deck layout
• Turnbuckle cylinder travel increased by 100 mm on C520, C530 and C600 models (for Ø 22 mm single-turn forestay with turnbuckle)

Modern design
The updated profile adapts to contemporary deck layouts and modern sail plans.

Components
This product includes a motorization kit, a complete set of grey rounded extrusions, a swivel and a turnbuckle cylinder. Standard delivery includes a stainless steel base tube.

Technical specifications (key data)

• Reference model: NDH2C530
• Sailing program: Cruising
• Recommended boat length: From 18.50 to 22 m
• Sails compatible: Genoa, solent
• Structural system: No
• Partial furling: Yes
• Motorization type: Hydraulic
• Optimal torque (Nm): 300
• Maximum operating pressure (bar): 140
• Recommended maximum flow (L/min): 15
• Max forestay diameter (mm): 19
• Standard length (m): 22
• Extrusion length (m): 2
• Warranty: 3 years
