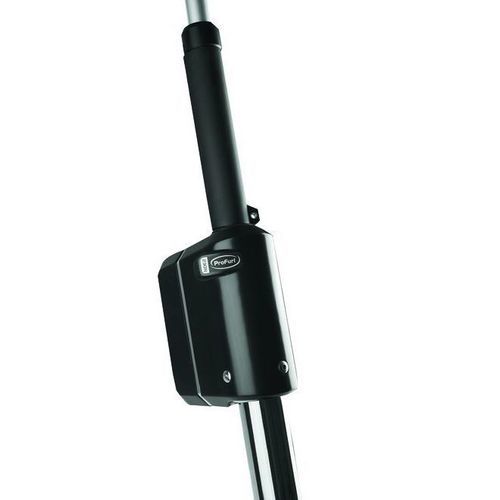

Sailboat furler NDE2C520

headsailgenoamotorized

Description All Profurl motorized furlers have been developed to bring comfort, reliability and safety. NDE2 C480, C520, C530 & C600 benefit from NDE Profurl mono-motor technology developed and proven for more than 30 years. These motorized furlers are designed for boats from 14 m.

Technical description

• Easy operation without physical effort
• Safe operation from the cockpit
• Suitable for short-handed or solo sailing
• Sail can be furled in either direction
• Low power consumption and minimal noise
• Available in 12 V and 24 V
• Easy installation on the existing forestay
• Maintenance free
• Emergency backup system
• Possible conversion of a manual furler to a motorized furler
• 3-year worldwide limited warranty

Proven reliability

• 30 years of experience in gearmotor reducer design
• NDE2 reducer architecture based on over 20 years of NDE system development
• High-quality material selection for enhanced durability and service life
• Surface treatments chosen for effective corrosion resistance
• Robust extrusions to support high torque loads
• Vent to eliminate internal condensation (models NDE2 C480 to C600)
• ISO 10133 compliant, highly resistant electrical cables (models NDE2 C480 to C600)

Performance

• Specially designed motor system for quick, easy and repeatable sail manoeuvres
• Optimal torque/speed ratio for furling and unfurling in all sailing conditions
• Low power consumption; no special battery required

Ease of installation

• Can be adapted to fit your existing forestay
• Available in multiple assembly configurations (stainless steel tube or link plates) to suit deck layout
• Turnbuckle cylinder capacity increased by 100 mm on C520, C530 and C600 (Ø 22 mm forestay with turnbuckle)

Modern design

• Designed for modern deck layouts and sail plans; selected on major production and semi-custom yachts

Safety

• Handle socket located at rear of the housing (handle supplied) for instant manual operation if power is lost

Components This product includes a motorization kit, a complete set of grey rounded extrusions, a swivel and a turnbuckle cylinder. Standard delivery includes a stainless steel tube, a relay box and a circuit breaker.

Characteristics / technical specifications

• Sailing program: Cruising
• Boat length (m): From 16.50 to 18.50 m
• Sail types: Genoa, solent
• Structural system: No
• Partial furling of the sail: Yes
• Motorization type: Electric
• Engine type:
• Power (W): 800
• Power supply (V): 12 / 24
• Circuit breaker (A): 60A / 30A
• Optimal rotation speed (rpm): 33
• Optimal torque (Nm): 12V: 78 / 200 Nm - 24V: 80 / 300 Nm
• Max forestay dia (mm): 16 / 19*
• Standard length (m): 20
• Extrusion length (m): 2
• Warranty: 3 years
• Accessories: Wired remote controller Part # 53320 - Radio remote controller Part # P53310
