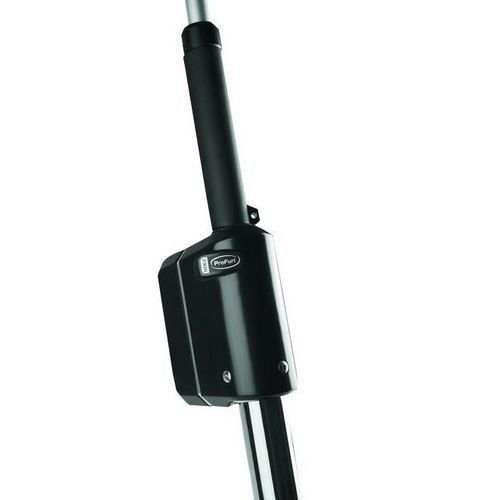

Sailboat furler NDE2C530

headsailgenoamotorized

Description
All Profurl motorized furlers have been developed to bring comfort, reliability and safety. The NDE2 C480, C520, C530 and C600 use Profurl NDE (single motor) technology developed over more than 30 years. These motorized furlers are dedicated to cruising yachts from 14 m and up.

Technical description

• Benefits of the motorized system:
• Easy operations without physical effort
• Safe operation from the cockpit
• Ideal for short-handed or single-handed sailing
• Quiet operation
• Easy installation on the existing forestay
• Sail can be furled in either direction
• Available in 12V and 24V
• Low power consumption
• Maintenance free
• Convertible from manual to motorized furler
• Safety backup with handle socket
• 3 year worldwide limited warranty
• Proven reliability:
• 30 years of experience designing gearmotor reducers
• NDE2 reducer design based on over 20 years of NDE system development
• High-quality materials for long service life
• Surface treatments for effective corrosion resistance
• Robust extrusions to withstand high torque
• Vent to avoid internal condensation (models NDE2 C480 to C600)
• High-resistance cables compliant with ISO 10133 (models NDE2 C480 to C600)
• Performance:
• Motor system designed for quick, repeated sail manoeuvres
• Optimized torque/speed ratio for furling/unfurling in varied conditions
• Low electrical consumption, no special batteries required
• Ease of installation:
• Adjustable to suit existing forestay
• Multiple assembly configurations (stainless steel tube or link plates) to suit deck layout
• Turnbuckle cylinder travel increased by 100 mm for C520, C530, C600 (Ø 22 mm forestay with turnbuckle)
• Design:
• Contemporary design suitable for modern deck plans and sail designs
• Safety:
• Handle socket (handle supplied) at rear housing for instant manual operation in case of power failure

Components
This product includes a motorization kit, a complete set of grey rounded extrusions, a swivel and a turnbuckle cylinder. Standard delivery includes a stainless steel tube, a relay box and a circuit breaker.

Technical information
Sailing program: Cruising
Boat length (m): From 14 m
Sails type: Genoa, solent
Structural system: No
Partial furling of the sail: Yes
Motorization type: Electric
Engine type: Single motor
Power (W): 800
Power supply (V): 12 / 24
Circuit breaker (A): 60A / 30A
Optimal rotation speed (rpm): 33
Optimal torque (Nm): 12V: 78 / 200 Nm - 24V: 80 / 300 Nm
Max forestay dia (mm): 19
Standard length (m): 22
Extrusion length (m): 2
Warranty: 3 years worldwide limited warranty
Accessories: Wired remote controller Part # 53320 - Radio remote controller Part # P53310

Specifications

• Model family: NDE2C series
• Intended use: Cruising headsail furling (Genoa, Solent)
• Motor power: 800 W
• Power supply: 12V / 24V
• Circuit breaker: 60A (12V) / 30A (24V)
• Optimal rotation speed: 33 rpm
• Torque (optimal): 12V: 78 / 200 Nm; 24V: 80 / 300 Nm
• Maximum forestay diameter: 19 mm
• Standard extrusion length: 22 m
• Extrusion length available: 2 m
• Turnbuckle cylinder travel increased by 100 mm for C520, C530, C600 (Ø 22 mm forestay with turnbuckle)
• Includes: motorization kit, extrusions, swivel, turnbuckle cylinder, stainless steel tube, relay box, circuit breaker
• Accessories: Wired remote controller (Part # 53320), Radio remote controller (Part # P53310)
• Warranty: 3 years worldwide limited warranty
