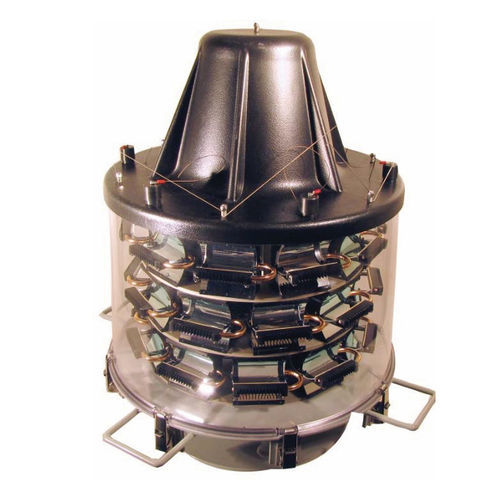

Lighthouse and beacon signalling light FA-410

LEDyellowwhite

The FA-410 LED LR signaling lantern is designed for lighthouse applications where a long range LED lantern is the preferred choice. The light is a unique combination of high intensity and optical efficiency giving the possibility of a nominal range in excess of 20 nautical miles (T=0.74) and 29 nautical miles (T=0.85), depending on color and flashing character. Features: FA-410 LED LR consists of a linear array of very high flux LEDs individually mounted in a parabolic reflector The highly efficient reflector uses a state of the art dichroic hybrid spectral coating; groups of reflectors are assembled in stacked arrays and the array system is driven by specially designed electronics LED arrays are coupled to a unique patented cooling system which ensures that the LEDs are able to maintain intensity well beyond the life of competing products; temperature of the LEDs is kept below 100°C at maximum power level to assure the long life of 60,000 hours The controller provides flash control, current limiting to the LED, photocell input (auto, forced on, forced off), synchronization terminal and AC converter (if required) Terminals for UNIFLASH® III wireless synchronization system or hardwired sync circuit (Optional) Lanterns can be mounted up to 500 meters away from external electronics (some restrictions apply, consult factory) Terminals for UNIFLASH®III wireless synchronization system or hardwired sync circuit 255 + 1 Selectable character Flash Rhythm (one selectable) 15+1 selectable power level settings (one selectable) External or Internal mount Photocell ATONIS ready for AIS Msg 21 and Msg 6 monitoring
