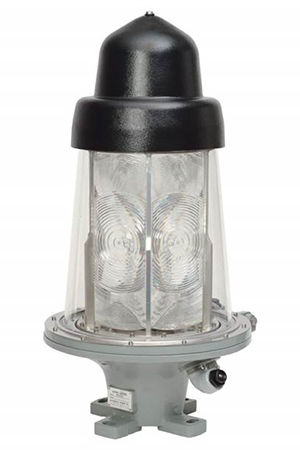

Lighthouse and beacon signalling light APRB-252

tungsten halogenxenonmetal halide

The APRB-252 is an extremely successful medium range rotating beacon designed for remote installations, with a range of up to 22 nautical miles. The APRB-252 Rotating Beacon’s highly efficient design, low maintenance drive system, and resistance to the corrosive marine environment make it the ideal choice for Remote Solar Installations. The APRB-252 is Light Weight and can be carried by one technician for installation. Features: All IALA Recommendations are met All IALA Colors are available Highly efficient precision molded, acrylic, Fresnel lenses and UV stable seamless, molded acrylic cover are configured in a proven environmental packaged system Highly efficient, motor-drive system with a microprocessor controlled 4-phase stepper motor Optical system is comprised of a hexagon arrangement using up to 6 Fresnel lenses rotated around a wide choice of stationary light sources Lens panels contain both catadioptric and dioptric injection molded lens element Replacement of selected panels with blanking plates or colored panels provides for a wide variety of flash codes, including group flashes and alternating colors commonly used on airway beacons Optional tungsten halogen, metal halide and xenon lamps AC or DC input Integrated bird spike Lenses easily extractible for cleaning Level indicator Minimum maintenance Hex switch selectable speeds from 0.5-10 rpm More than 20 year duty life
