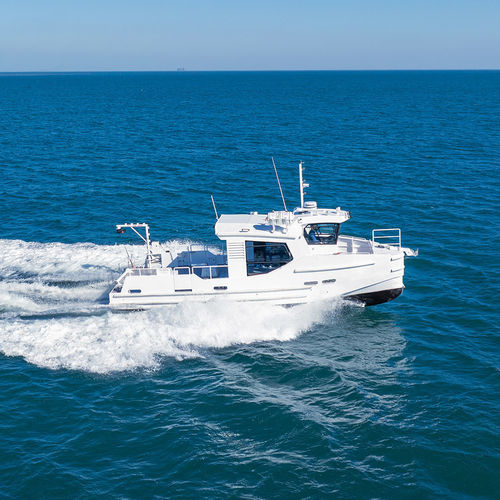

Work boat H77 : 12m EEJEEYA

logistics transport boatharbor service boatinboard

Presentation
This Aluminum Swift Cargo Vessel, measuring 12.20 m in length and 4.20m in width, is intended for cargo transport.
It is designed to comply with French standards for both maritime and inland waterway operations.
Its deck cargo capacity is 5 tonnes.

Type of Vessel

• Swift Cargo Vessel
• Semi-Planing Monohull Designed for Cargo Transport

Dimensions & capacity

• Overall length: 12.20 m
• Hull length: 11.70 m
• Waterline length: 11.10 m
• Beam: 4.20 m
• Moulded depth: 1.38 m
• Loaded draft: 1.20 m
• Deck cargo capacity: 5 tons

Builder & design

• Builder: ODC Marine
• Naval architect: Eric JEAN
• Construction material: Marine-grade aluminium

Approval & classification

• Swift Cargo Vessel Compliant with French Standards
• Design Drawings Approved by Bureau Veritas
• Construction Survey Conducted by Bureau Veritas
• Shipyard Visit by a Marine Affairs Inspector

Main characteristics / operating profile

• Annual operation: 1 500 h/year
• Standard propulsion: 2 × 270 hp (IVECO NEF60 5.9 L)
• Fuel capacity: 2 × 400 L
• Engine room ventilation: 6 000 m³/h

Layout & comfort equipment

• Acoustic and vibration treatment
• Aluminium honeycomb linings and finishes
• Wheelhouse glazing, audio system and full LED lighting

Surface treatment

• Topsides: waterborne paint system with epoxy filler finish
• Underwater hull: antifouling

Propulsion system

• Standard: 2 × IVECO NEF60 5.9 L - 270 hp @ 3,000 rpm
• Gearboxes: 2 × ZF 220
• Shafts & propellers: 4‑blade, ZF class S

Steering

• Hydraulic steering ram and LS pump
• Helm angle sensor and indicator; hydraulic bypass and emergency manual steering

Cargo handling

• Deck cargo capacity: 5 tonnes

Electrical sources & distribution

• Engine start: 2 × Optima 24 V, 75 Ah packs
• Windlass battery: 24 V, 75 Ah
• Service battery: 24 V, 200 Ah; safety battery: 24 V, 150 Ah
• Radio safety battery: 12 V, 110 Ah; 2 × battery chargers 24 V, 30 A

Navigation equipment

• Simrad NSS9 evo3 GPS + external GPS antenna; Simrad Halo 20 radar
• 2 × Simrad RS20S VHF; 1 × portable GMDSS VHF
• Ocean Signal SART & EPIRB; Lalizas compass

Mooring & anchoring

• Electric windlass 1.5 kW
• High‑holding Rocna anchor

Fire-fighting

• Marinelec detection panel; engine room rockwool insulation
• Novec extinguishing system; engine‑driven pump + hose; backup diesel fire pump on deck

Flooding / bilge systems

• Marinelec water level detection
• Bilge network with engine‑driven pump and backup diesel pump

Safety & evacuation

• Regulatory safety equipment

(liferaft, lifejackets, buoys, lights); remote liferaft release operable from wheelhouse

Navigation lights & signaling

• Marinelec supervision of navigation lights
• Regulatory lighting fitted
