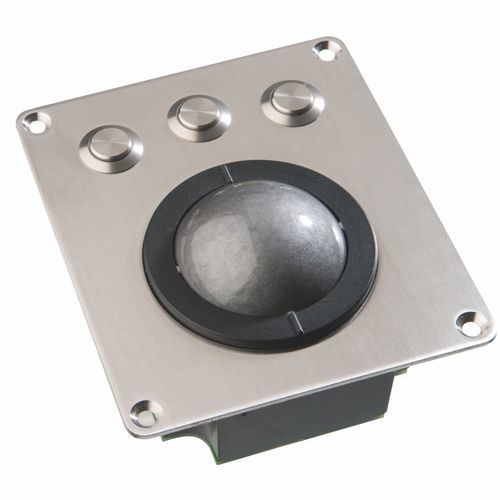

Laser trackball TSX50-M

panel-mountUSBwaterproof

• Certificate of conformity, fully compliant with IEC60945
• 50 mm laser trackball – vandal proof
• IP68 sealed
• Removable top for easy cleaning of ball compartment
• 8 versions in blank or black coated stainless steel
• Stainless steel carrier and switches
• Front panel mounting (holes or studs)
• Combo PS/2 & USB output

Panel Mount Versions
8 standard panel mount versions of the TSX50 range
Front panel mount version with studs
Front panel mount with holes for countersunk M4 screws (not included).
Choice of switches: IP65 pushbutton switches or IP68 short travel switches.
Choice of carrier plate: Blank stainless steel carrier or matt blackened stainless steel carrier.
Trackball specifications
Sealing: IP68 waterproof
Carrier plate: brushed stainless steel
Ball diameter: 50.8 mm (2'')
Ball material: polyester
Lifetime: >= 2 million ball revolutions
Tracking force: nom. 50 grams
Output: PS/2 & USB Combo
Cable: 1 shielded, straight 1.6 m long
Operating temperature range: -10°C to +60°C
Storage temperature range: -25°C to +80°C
Dimensions / weight: 100 x 116 x 50 mm / 0.6 kg
Trackball connectivity
These combo PS/2 & USB trackball units have a 1.6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
Non certified version
These trackballs are also available without IEC60945 marine certification.
Technical characteristics / specifications

• IEC60945 compliant
• IP68 waterproof
• 50.8 mm polyester ball
• Brushed stainless steel carrier plate
• Combo PS/2 & USB output
• Removable top for cleaning
• Front panel mounting (studs or holes)
• Operating temperature: -10°C to +60°C
• Storage temperature: -25°C to +80°C
• Dimensions: 100 x 116 x 50 mm
• Weight: 0.6 kg
• Lifetime: >= 2 million ball revolutions
