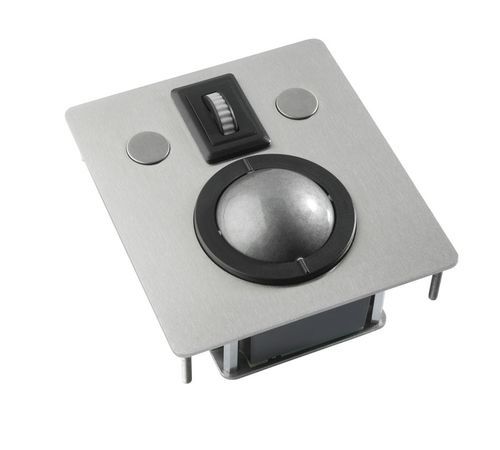

The Worlds' first waterproof trackball range with integrated IP68 scroll wheel ! Easy scrolling & rolling throughout your applications, even in the harshest of environments. This series is IP68 waterproof and uses the latest generation of optical trackballs. What makes this product so revolutionary is the integration of an IP68 waterproof scroll wheel with click function.
IP68 sealed waterproof trackball
50 mm waterproof laser optical trackball
IP68 scroll wheel with click function
Stainless steel for the various parts
Best resistance in salty or greasy environments.
Easy maintenance - removable ball
4 standard panel mount versions of the LTSX50 range
Front panel mount version with studs
Front panel mount with holes for countersunk M4 screws (not included).
Choice of carrier plate :
Blank stainless steel carrier or matt blackened stainless steel carrier.
General technical specifications
Sealing : IP68 waterproof
Carrier plate : Stainless steel
Ball diameter : 50,8 mm (2'')
Ball material : polyester
Weight : 0,6 kg
Lifetime trackballs : >= 2 million ball revolutions
Lifetime scroll wheel : 1 million operations
Lifetime switches : 3 million operations
Tracking force : nom. 50 grams
Output : PS/2 & USB Combo
Cable : 1 shielded, straight 1,6 m long
Operating temperatur : 0°C to +60°C
Storage temperature : -25°C to +80°C
Dimensions : 116 x 130 x 50 mm
Added silicone sponge gasket
A silicone sponge gasket is included with the module to ensure adequate sealing into the customers' panel or console and a cover plate on the rear side protects the components.
