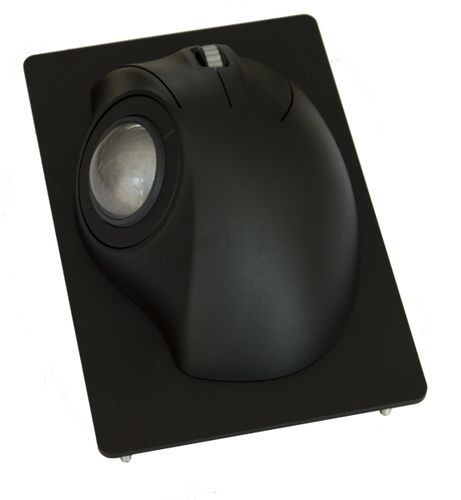

Waterproof trackball TBE38
laserpanel-mountfor ships

waterproof trackball
waterproof trackball
Add to favorites
Compare this product


Characteristics

Options
waterproof, laser, panel-mount
Application domain
for ships

Description

Sealing to IP68, fully waterproof Laser optical navigation technology Integrated IP68 hall-effect scroll wheel Integrated left, middle and right switch functionality 38 mm ball for precise cursor movement Removable ball for easy cleaning Output: USB Smooth operation in rugged environments Weight : ~700 grams Housing material : PC/ABS Housing colour/finish : Black/fine-textured finish Base plate material : Aluminium Base plate finish : Bead blasted & clear anodised Mounting position : All angles Ball size/material : Ø38.1mm (1.5")/Epoxy resin Tracking force :20 grams nominal – damper ring seal 20-40 grams – PTFE seal Ball load :100N (10Kg) maximum downward pressure for 2 minutes @ 20°C Resolvable ball speed : 30 IPS (inches per second) Tracking engine : Infra-red optical navigation technology Removable ring : PC/ABS, black Scroll wheel specifications Wheel diameter : Ø25mm Wheel material : PC/ABS Wheel colour : Grey Encoding technology : Hall effect Magnet strength : N42 Detent-scrolling force : 30 grams nominal Switch actuation force : 275 ± 125 grams force Left/right switch Switch actuation force : 250 ± 100 grams force Special version on TBE38 This trackball is also available with IEC60945 marine certification
