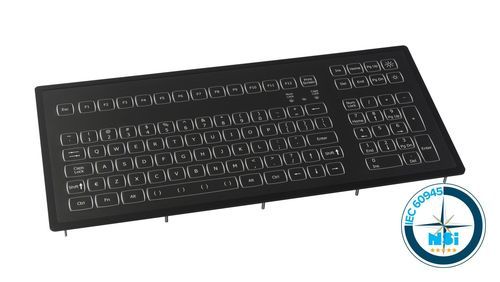

Yacht computer keyboard KSM103

for shipsfor sailboats103-key

IEC 60945 fully certified 103 key compact backlit short travel keyboard. The keyboard has a multi-functional layout with
separate numerical- and control keypads. Panel mount version available.

Main features

• Panel mount version available
• Brightness LED's with fibre optics
• Low power LED's warrant for a long life
• No external power supply necessary, keyboard port power sufficient
• Dimmable backlighting at 8 levels by two dedicated keys
• Intelligent luminosity setting of “numlock” and capslock” LED's
• Optional backlight control by an external DC voltage, PWM signal or potentiometer
• Panel mount version with bezel for edge protection

General technical specifications

• Key travel / force : 0,3 mm travel and 2,55 N operating force
• Output : 1,6 m shielded USB cable
• Power requirements : directly from USB port
• Operating temp. : -15°C to +60°C
• Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant
