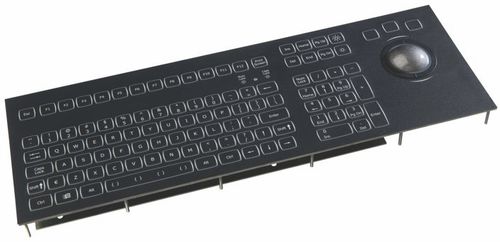

Ship computer keyboard KSMX106

for marinas106-keywith trackball

This 106 key backlit keyboard has a multi-functional layout with separate numerical- and control keypads and integrates a large 50 mm optical trackball with removable ball. It has a long life, low power LED backlighting using fiber optics techniques. Panel mount, panel mount with bezel and desktop version available.

Main features

• Two dedicated keys for up/down dimmimg
• Low power LED's warrant for a long life
• No external power supply necessary, keyboard port power sufficient
• The illumination intensity is dimmable
• Intelligent intensity setting of "Numlock" and "Capslock" LEDS
• White backlighting as standard (other colours on request)

General technical specifications

• Key travel / force: 0,3 mm travel and 2,55 N operating force
• Pointing device: 50 mm optical trackball, grey ball
• Output: USB
• Power requirements : directly from USB or PS/2 port
• Operating temp. : -15°C to +60°C
• Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant
