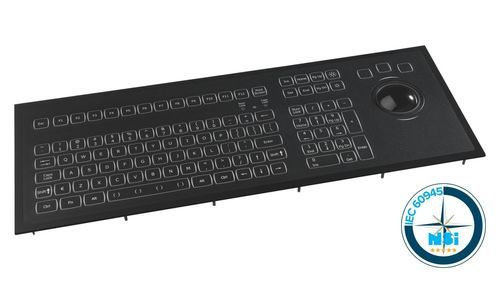

Yacht computer keyboard KSML106

for shipsfor sailboats106-key

This 106 key backlit keyboard features a compact full MF keyboard with integrated a large 50 mm waterproof trackball with removable ball. It has a long life, low power LED backlighting using fiber optics techniques. Panel mount, panel mount with bezel and desktop version available.

Main features

• Functional layout with separate numeric-, function- and control key pads
• High brightness LED's with fibre optics
• Illumination of the key legends and contour, the trackball contour and even customer logo's or trademarks
• Two dedicated keys for up/down dimming
• Low power LED's warrant for a long life
• No external power supply necessary, keyboard port power sufficient
• The illumination intensity is dimmable
• Intelligent intensity setting of "Numlock" and "Capslock" LEDS
• White backlighting as standard, other colours on request

General technical specifications

• Key travel / force : 0,3 mm travel and 2,55 N operating force
• Pointing Device : 50 mm trackball, black epoxy resin ball
• Operating temp. : 0°C to +60°C
• Power requirements : directly from PS/2 or USB port
• Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant
