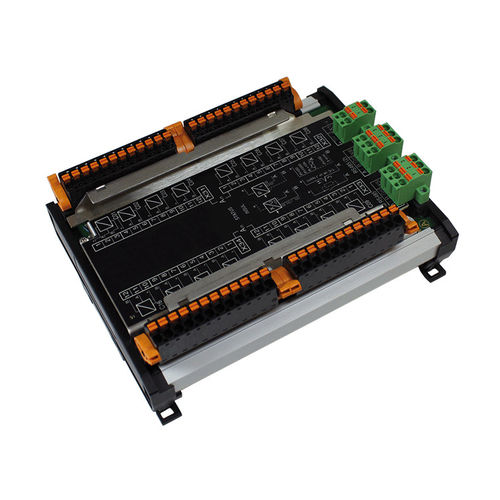

Control unit NORISYS 4 16AI

control unit
control unit
Add to favorites
Compare this product

Description

I/O slave module with 16 analogue inputs 16 analogue inputs for processing analogue standard signals (current, voltage, temperature, resistance) Robust design for harsh environments Ideal for use in shipbuilding thanks to approvals from classification societies The NORISYS 4 16AI is an I/O slave module and is controlled by an N4 CPU master module. It acquires analogue signals at 16 independent inputs from sensors with Pt100, Pt1000, type K or J thermocouple, resistors up to 10 kΩ or standard signals 0 … 20 mA, 4 … 20 mA, 0 … 10 VDC, 2 … 10 VDC and -10 … 0 … +10 VDC.
