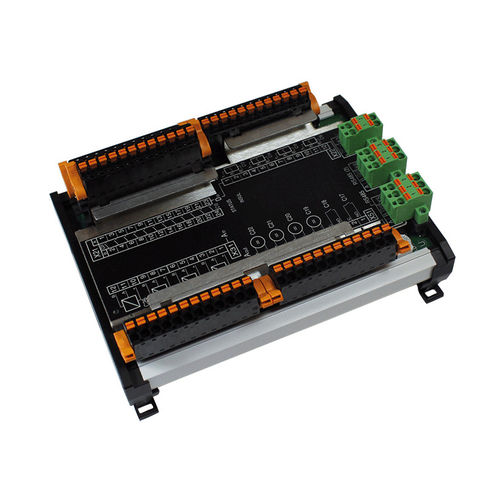

Control unit NORISYS 4 16DI4AI4AO

control unit
control unit
Add to favorites
Compare this product

Description

I/O slave module with 16 digital inputs, 4 analogue inputs, 4 analogue outputs and 2 relay outputs 16 digital inputs 4 analogue inputs for processing analogue standard signals (current, voltage, temperature, resistance) 4 potential-free analogue outputs for standard signals that can be changed over (current, voltage) Robust design for harsh environments Ideal for use in shipbuilding thanks to approvals from classification societies The NORISYS 4 16I4AI4AO is an I/O slave module and is controlled by an N4 CPU master module. It acquires the position of switches, such as limit switches, sensor switching outputs, operator switches and operator buttons, at 16 independent digital inputs. In addition, it is equipped with 4 configurable inputs for analogue signals for Pt100, Pt1000, type K or J thermocouple, resistors up to 10kΩ or standard signals 0/4 … 20 mA and -10 … 0/2 … +10 V. Also built in are 4 potential-free outputs for analogue standard signals that can be changed over 0/4 … 20 mA or 0/2 … 10 V and -10 V ... +10 V, supplemented by 2 signal relay outputs.
